10 Dies Working Efficiency Is 500 Pieces Per Hour Portable Hose
Crimping Machine Hydraulic Hose Crimper
DESCRIPTION
High-Performance Portable Hose Crimper
Introducing our state-of-the-art Portable Hose Crimping Machine Hydraulic Hose Crimper, designed for optimal efficiency and performance. This Portable Hose Crimping Machine Hydraulic Hose Crimper, featuring 10 interchangeable dies, is capable of producing an
impressive output of 500 crimped hoses per hour. Portable Hose Crimping Machine Hydraulic Hose Crimper portable design ensures easy transport, making Portable Hose Crimping Machine Hydraulic Hose Crimper ideal for on-site applications. The striking blue finish adds a
modern touch while maintaining robust functionality. Perfect for
professionals seeking reliability and speed, Portable Hose Crimping Machine Hydraulic Hose Crimper elevates your crimping process, ensuring consistent quality and
performance across various tasks.
Our products have been widely used in various industries like
engineering machinery,coal mines,chemicals,
metallurgy,petroleum,automobile,shipbuilding,aviation and
transport.

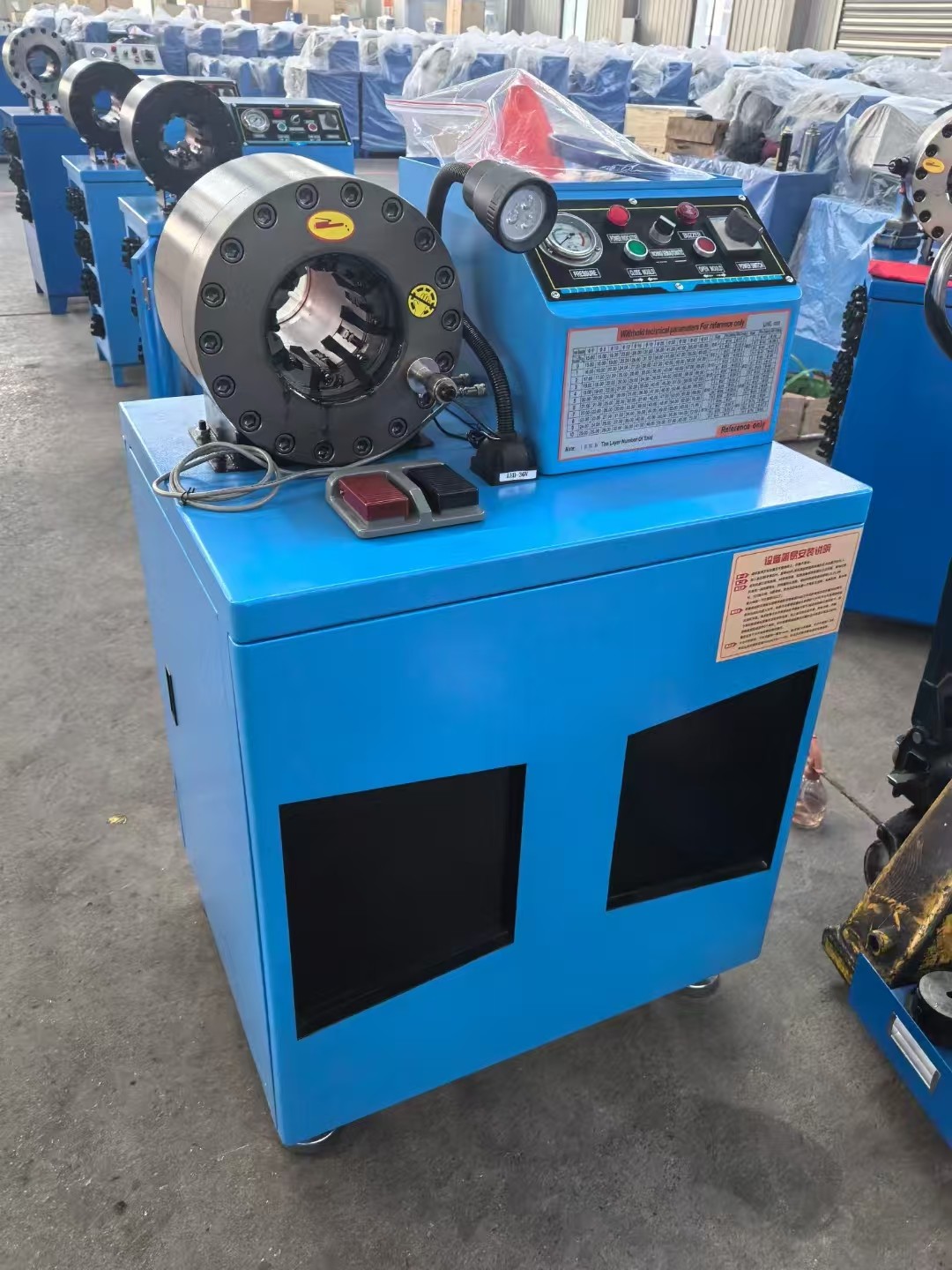

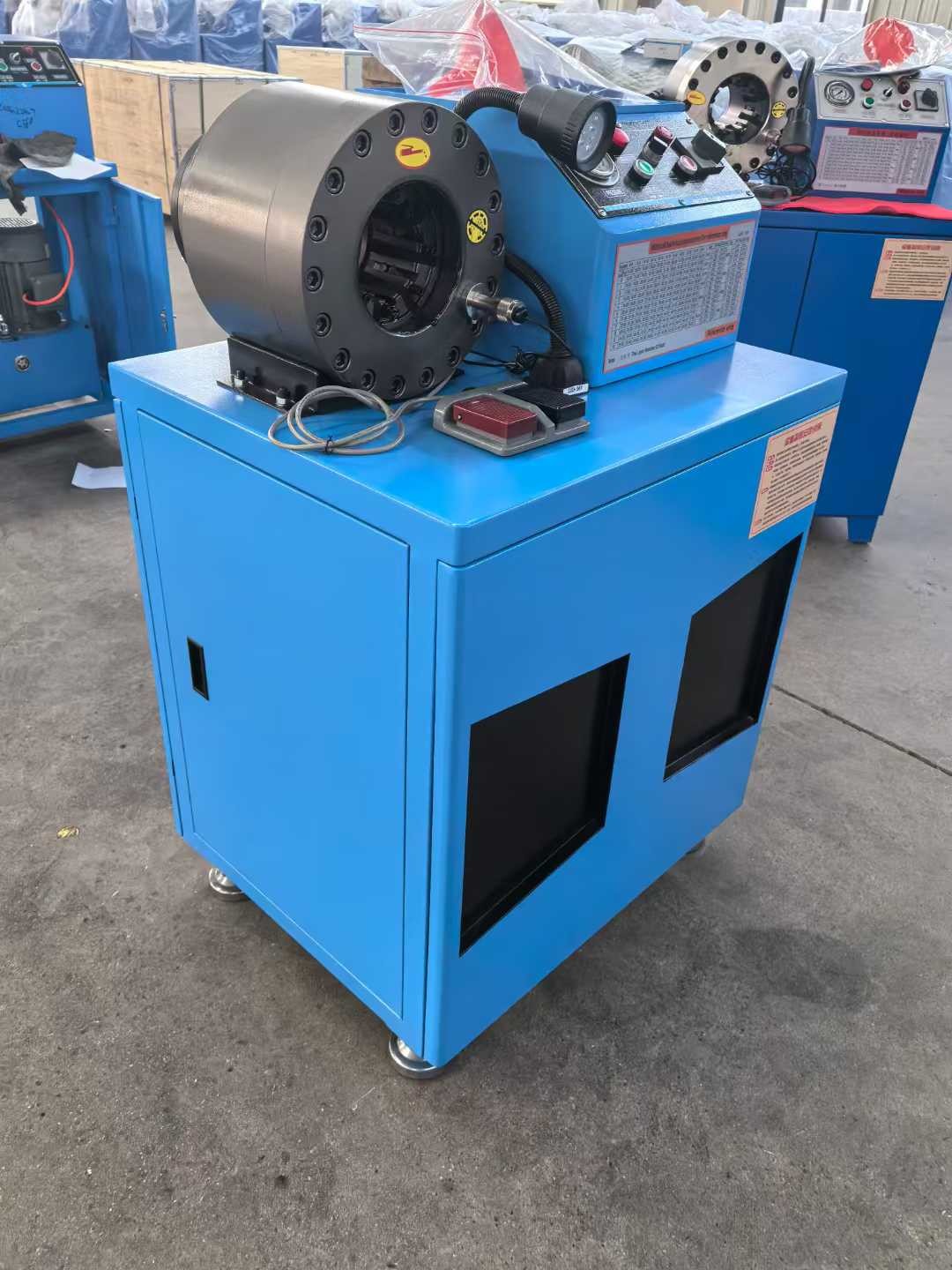

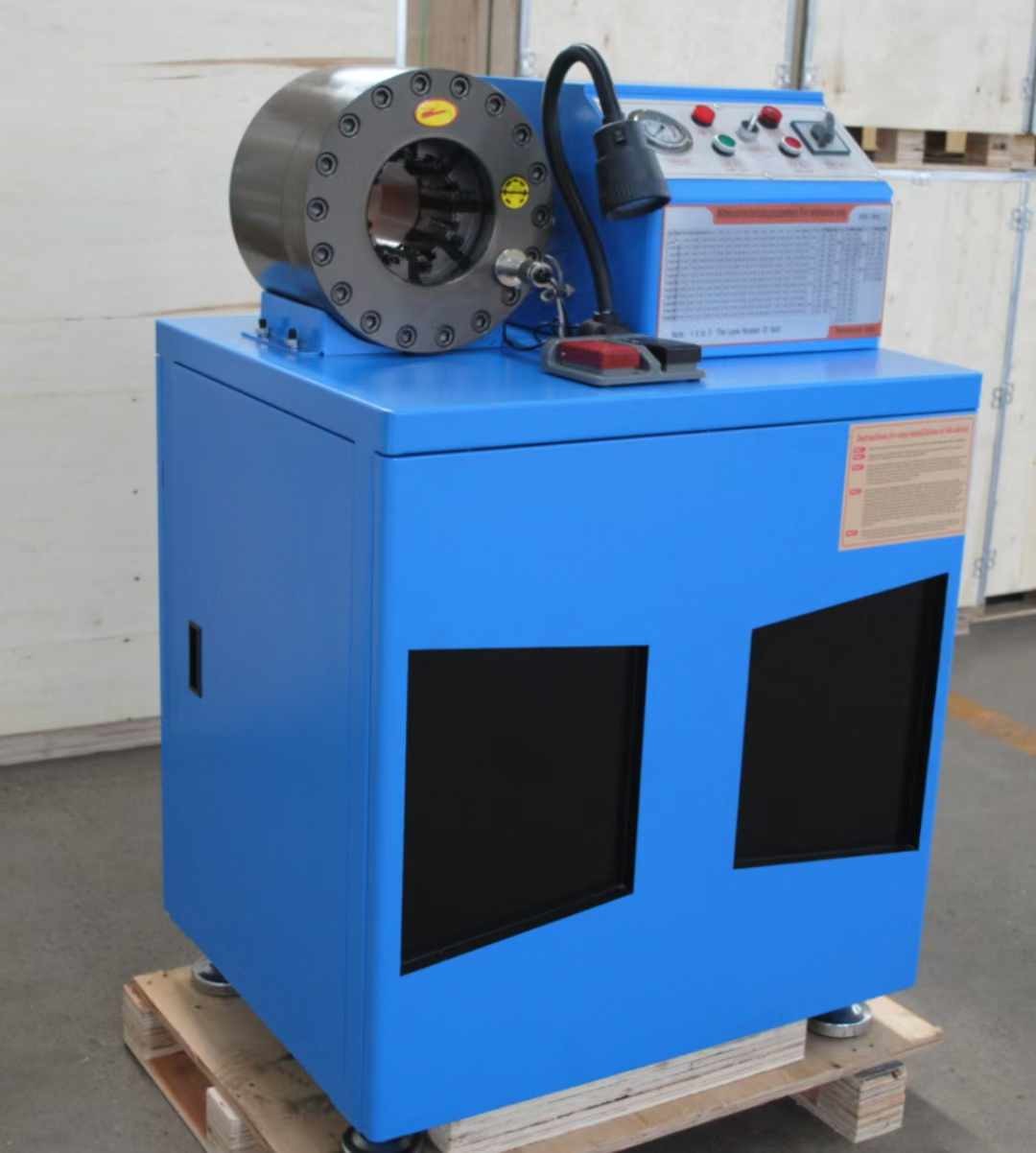

FY-51XK is a hose crimper for hydraulic high pressure flexible hose
range from 1/4 inch to 2 inch one to six stainless steel wire
braided or spiraled. It has three different operate mode, to meet
customer different need.
MAIN ADVANTAGES
1. Big oil pump, efficient and long life
2. Multifunctional operate panel, easy to change between automatic
and semi-auto
3. Pressure can be shown on the panel
4. Foot pedal as standard to make hands free
5. Working light to make crimping work more clear
crimping range/skiving range | 6-51mm(1/4''-2''inner diameter of hose) |
quantity of dies | 10 sets |
item diesNo. of | length 60mm(15,19,23,26) |
Length 70mm(31,36,41) |
Length 80mm(47,55,63) |
accuracy | 0.01mm |
output volume of pump | 10L |
system pressure | 31.5Mpa |
motor power | 4kw 1,2,3 phase (Optional) |
voltage | 220V/380V/415V(Customizable) 50/60Hz |
crimping force | 600T |
work efficiency | 500pcs/h |
maximum open diameter | 114mm |
the max open tolerance | ±30mm |
package dimension | 800*650*1230mm |
machine dimension | 830*720*1350mm |
Net weight | 310kg |
Gross weight | 326kg |
TECHNICAL DATA
| Model | FY-51XK Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30±mm |
| Die Sets | 10 |
Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
Work Efficiency | 500 pcs/h |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 4(KW) |
| Length | 800(mm) |
| Width | 650(mm) |
| Height | 1230(mm) |
| Weight | 310(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;

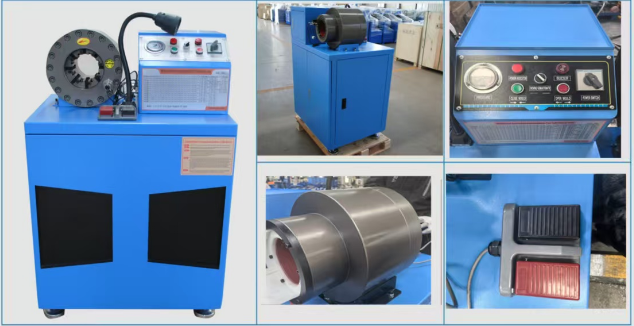

► FOOT PEDAL SWITCH
Free hands for big hose, more convenient; Double usage, both closing and opening function
► PEDAL SWITCH
Foot pedal is standard supplied, the advantage is it can free the
hand, so even for big size crimping, crimping will be easy
► HIGH QUALITY MOTOR
Copper wire aluminium motor, goof heat releasing
► SAFE DIE SET STORAGE
A box inside the machine body for storing the die sets
