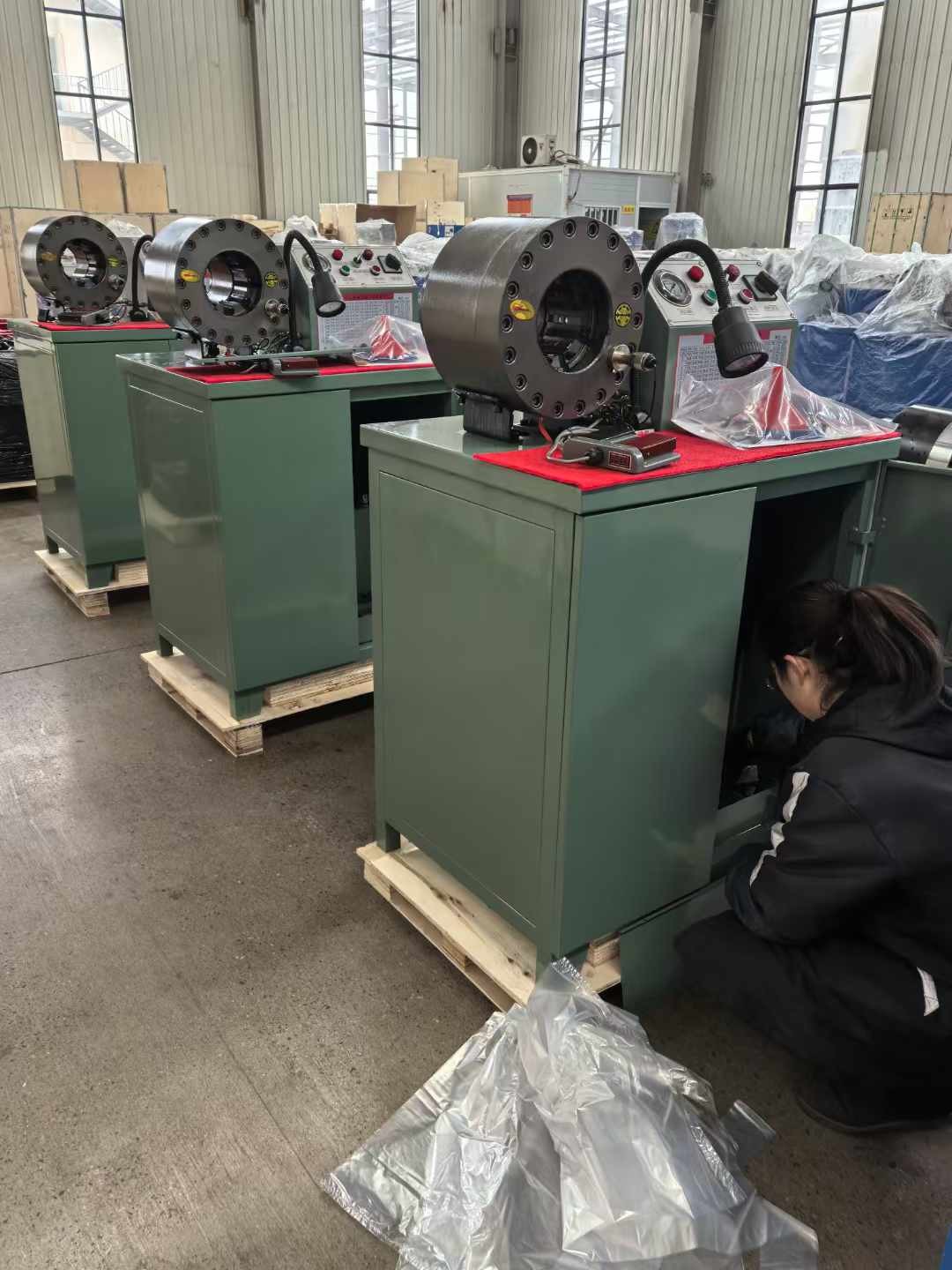

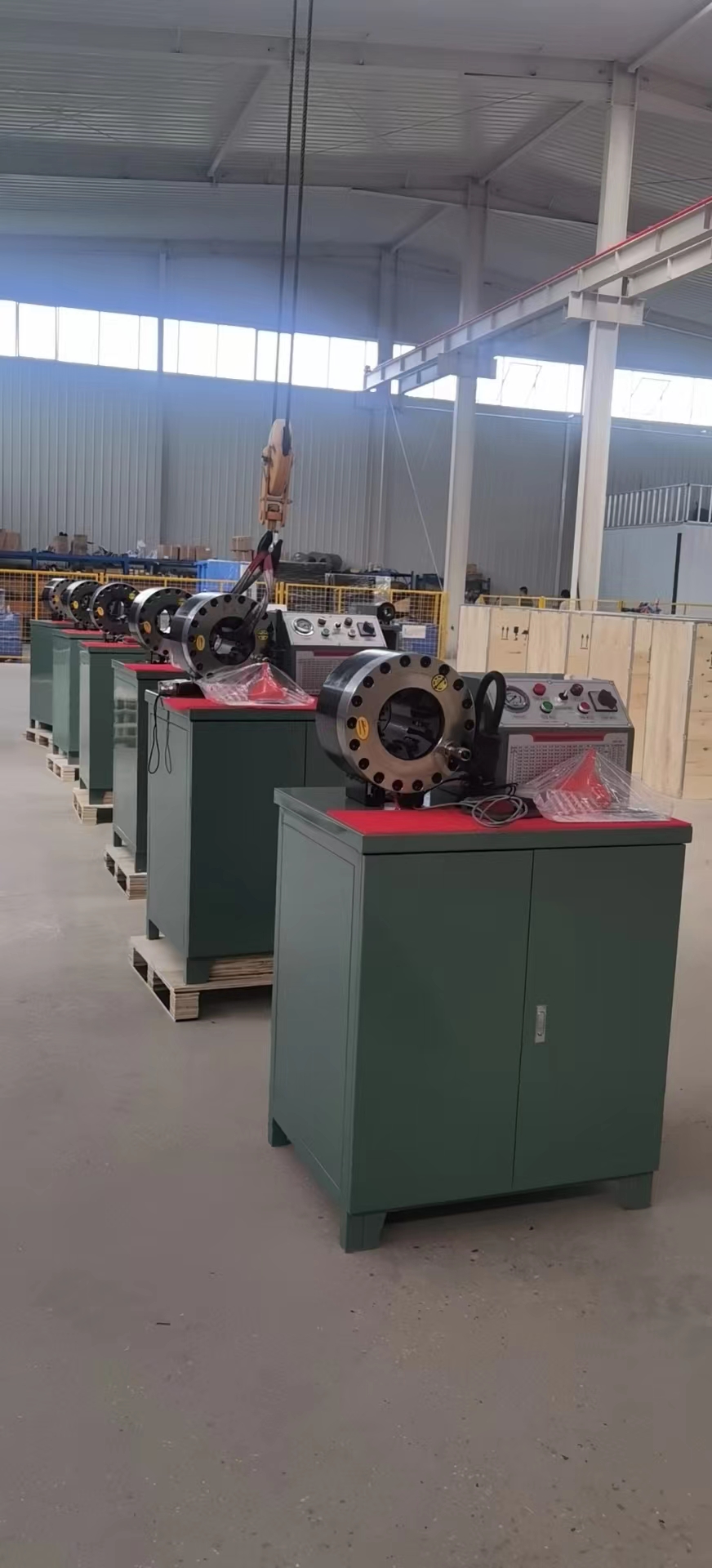

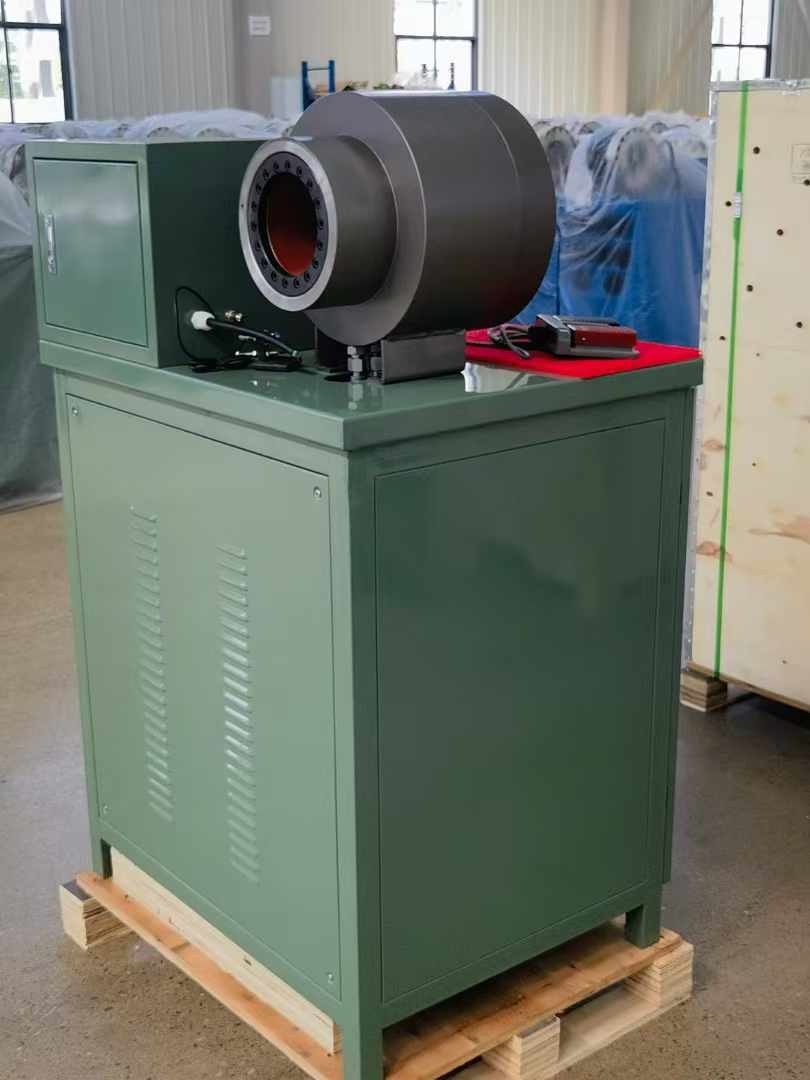

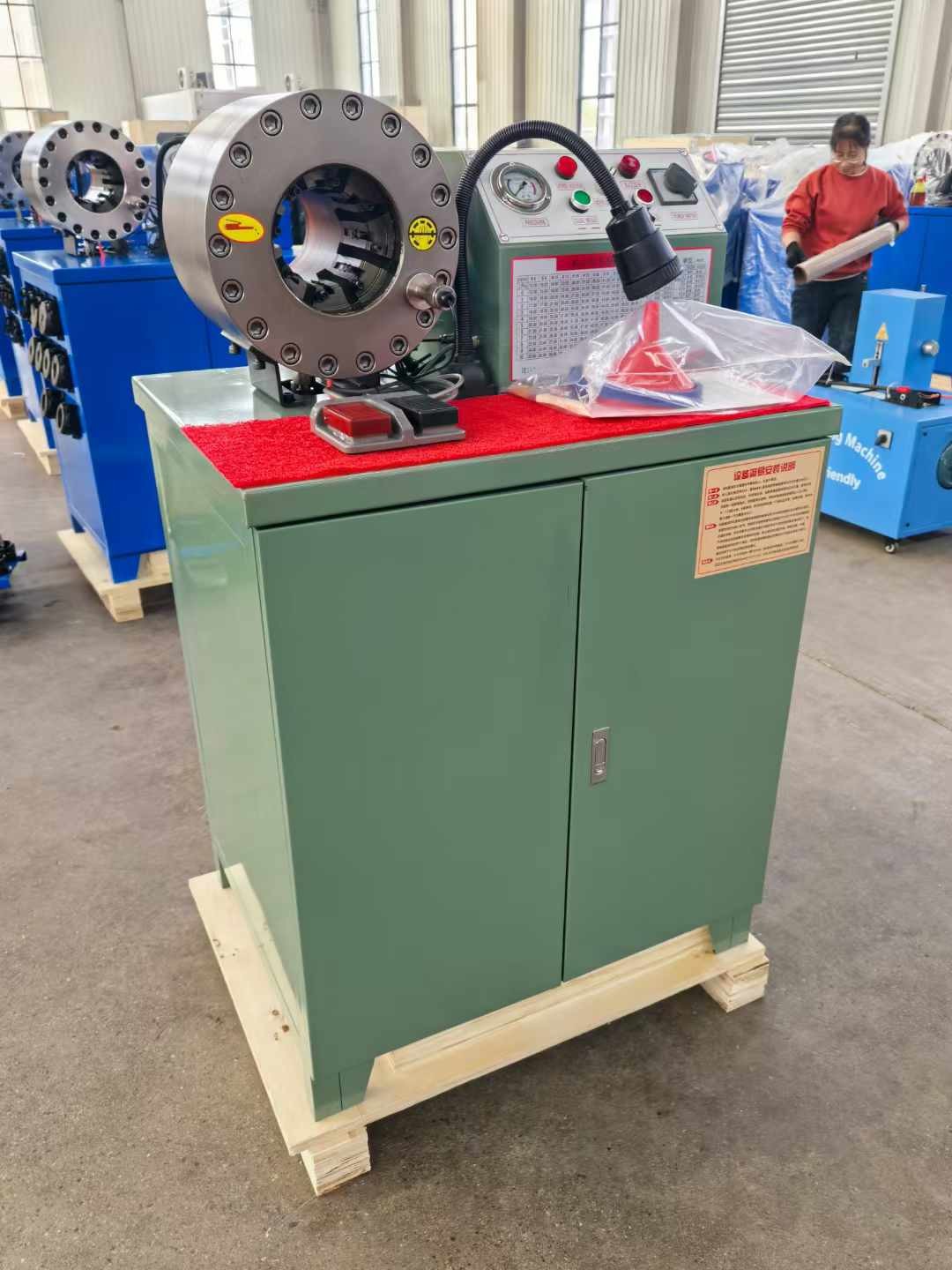

6-51mm 2" New Technology Forging Process Hydraulic Hose Crimping
Machine 10 Dies Hose Crimping Machine/Hose Crimper
Hydraulic Hose Pipe Crimping Machine Description
Introducing the 6-51mm, 2-inch hydraulic hose crimping machine,
featuring an innovative forging technology. This Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose
Crimper comes equipped with 10 dies, allowing for a wide range of hose
crimping applications. Designed for efficiency and precision, Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose
Crimper ensures consistent results while enhancing productivity. The
striking green finish adds a contemporary flair, making Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose
Crimper an attractive addition to any workspace. Built for durability,
this Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose
Crimper is perfect for professionals who demand high-quality performance.
Hydraulic Hose Pipe Crimping Machine mainly by withholding
mechanism, motor, gear pumps, control valves and tank components.
Suitable for mechanical engineering in the high-pressure hose
assembly with hold processing, but also with hold two-way elbow,
elbow and large shaped head. Hydraulic Hose Pipe Crimping Machine
is a metal fitting through the hydraulic machinery and the
corresponding mold with a high pressure hose withhold closely
together to prepare a high-pressure hose and fluid connectors,
referred to as high-pressure hose assembly. High-pressure hose
assemblies are widely used in oil, coal, aerospace, construction
machinery, agricultural machinery and other industries etc.
Hydraulic Hose Pipe Crimping Machine Specification
| crimping range | 4-51 mm |
| quantity of dies | 11 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L |
| system pressure | 31.5mpa |
| motor power | 3kw/4kw |
| voltage | 110v/220v/240v/380v/415v(optional) |
| crimping force | 600 t |
| work efficiency | 200 pcs/h |
| maximum open diameter | 114 mm |
| the max open tolerance | 30 ±mm |
| machine dimension | 860*640*1300 mm |
| package dimension | 900*685*1410 mm |
| net weight | 310 kg |
| gross weight | 325 kg |
Hydraulic Hose Pipe Crimping Machine TECHNICAL DATA
| Model | FY-LSSK51 Hose Pipe Crimping Machine |
| Crimping Range | 4-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/8-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 11 |
| Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Work Efficiency | 200 pcs/h |
| Standard Voltage | 110v/220v/240v/380v/415v(optional) |
| Motor Power | 3(KW)/4(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
Hydraulic Hose Pipe Crimping Machine MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;

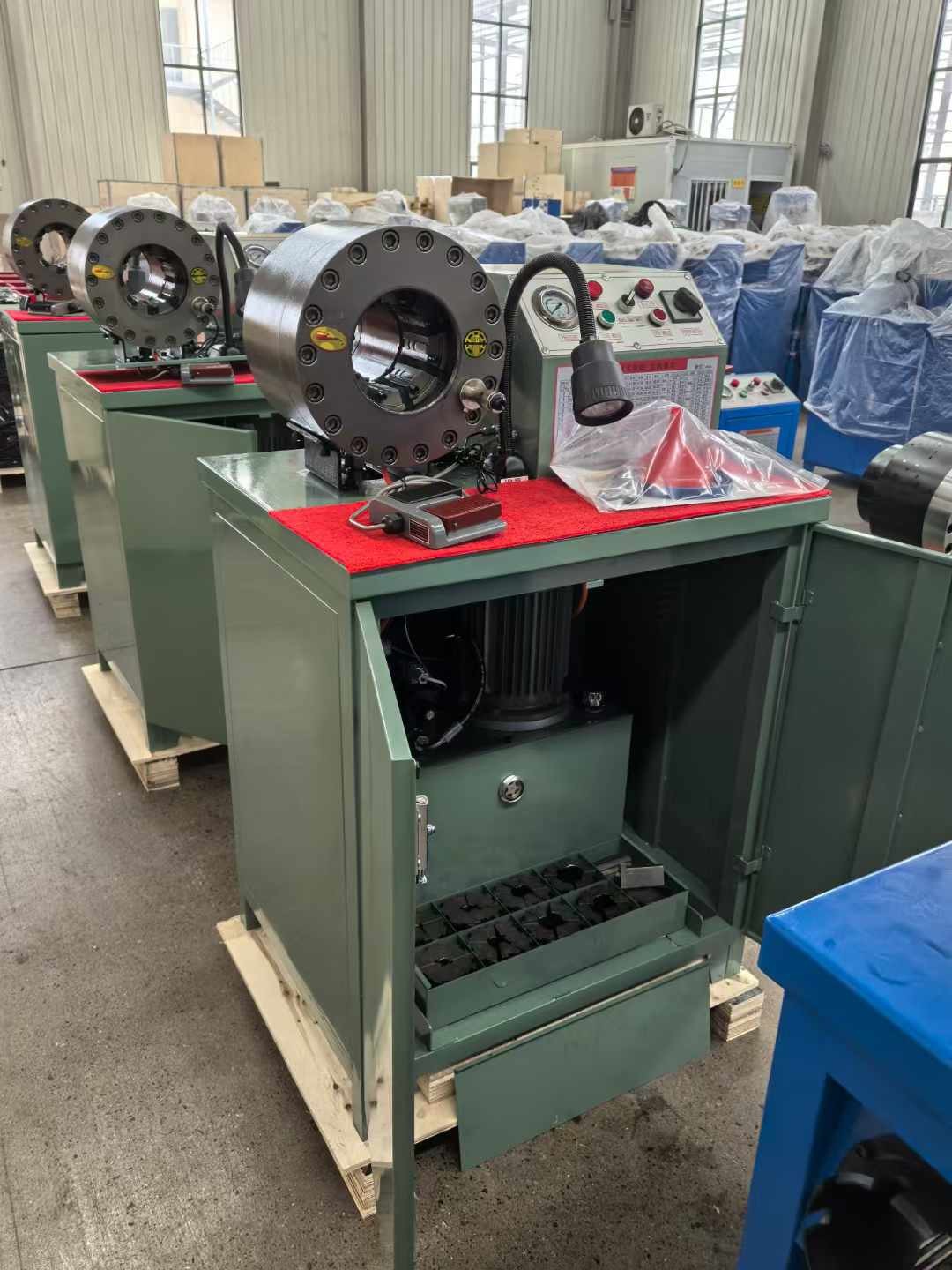

► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
► WORKING LIGHT
Make crimping more safe and easy
► PEDAL SWITCH
Foot pedal is standard supplied, the advantage is it can free the
hand, so even for big size crimping, crimping will be easy
► APPLICATION FIELD
The basic fucntion of a hose crimping machine is for crimping hose
assembly, but a hose crimping machine can not only do rubber hose
crimping, but can be used for quick jointing of other materials,
like cables, low pressure water pipes, wires, ropes, automotive
brake lines, etc.
