BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE
FY-CBK-51B DECRIPTION
3-Inch Hydraulic Hose Crimping Machine
Description:
This high-performance hydraulic hose crimping machine is designed
for efficiency and precision, making it ideal for industrial
applications that require the crimping of hoses up to 3 inches in
diameter.
Specifications:
Control System: Advanced PLC (Programmable Logic Controller) for
automated and accurate operation.
Power Rating: 7.5 kW, ensuring strong performance even during
high-demand tasks.
Production Capacity: Capable of crimping up to 800 pieces per hour,
significantly boosting productivity.
Key Features:
Rapid Changeover: The machine is designed for quick mould changes,
allowing operators to switch between different hose sizes with
ease. This feature minimizes downtime and enhances production
flexibility.
Efficient Hydraulic Mechanism: Equipped with a robust hydraulic
system that provides consistent and powerful crimping, ensuring
secure connections that meet stringent industry standards.
Sturdy Design: Constructed from high-grade materials, this machine
is built for durability, capable of withstanding the challenges of
continuous operation in busy environments.
User-Friendly Operation: The PLC control system simplifies the
setup and monitoring processes, making it accessible for operators
of all experience levels.
This hydraulic hose crimping machine is an excellent investment for
companies looking to enhance their operational efficiency while
maintaining top-quality hose assemblies.
Precautions before operation
1. When using the tube press for the first time, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H
With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw
Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be crimped 20 to 30 times without load, and it can be used
after observing that all parts are normal.
2. When using the pipe press in winter, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H
With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw
Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the
oil temperature.
3. Press the open button, after the mold base is opened, select the
corresponding mold to install on the mold base according to the
specifications of the hose to be crimped, and adjust the micrometer
scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the
press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and
automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to
check the
outer diameter of the crimped joint jacket. If it does not match
the parameter table, fine-tune the micrometer scale until the
crimping of the next hose meets the requirements.
FY-CBK-51B hose pressing machine is famous for its intelligent
control system and large opening mouth. With a super crimping
force, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H
With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw
Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine can crimp hydraulic hose R15 R13 up to 2 inch.
MAIN FEATURES
1. Thin head, easy fed for bend fitting;
2. Big crimping power;
3. High accuracy.
crimping range/skiving range | 6-51mm(1/4''-2''inner diameter of hose) |

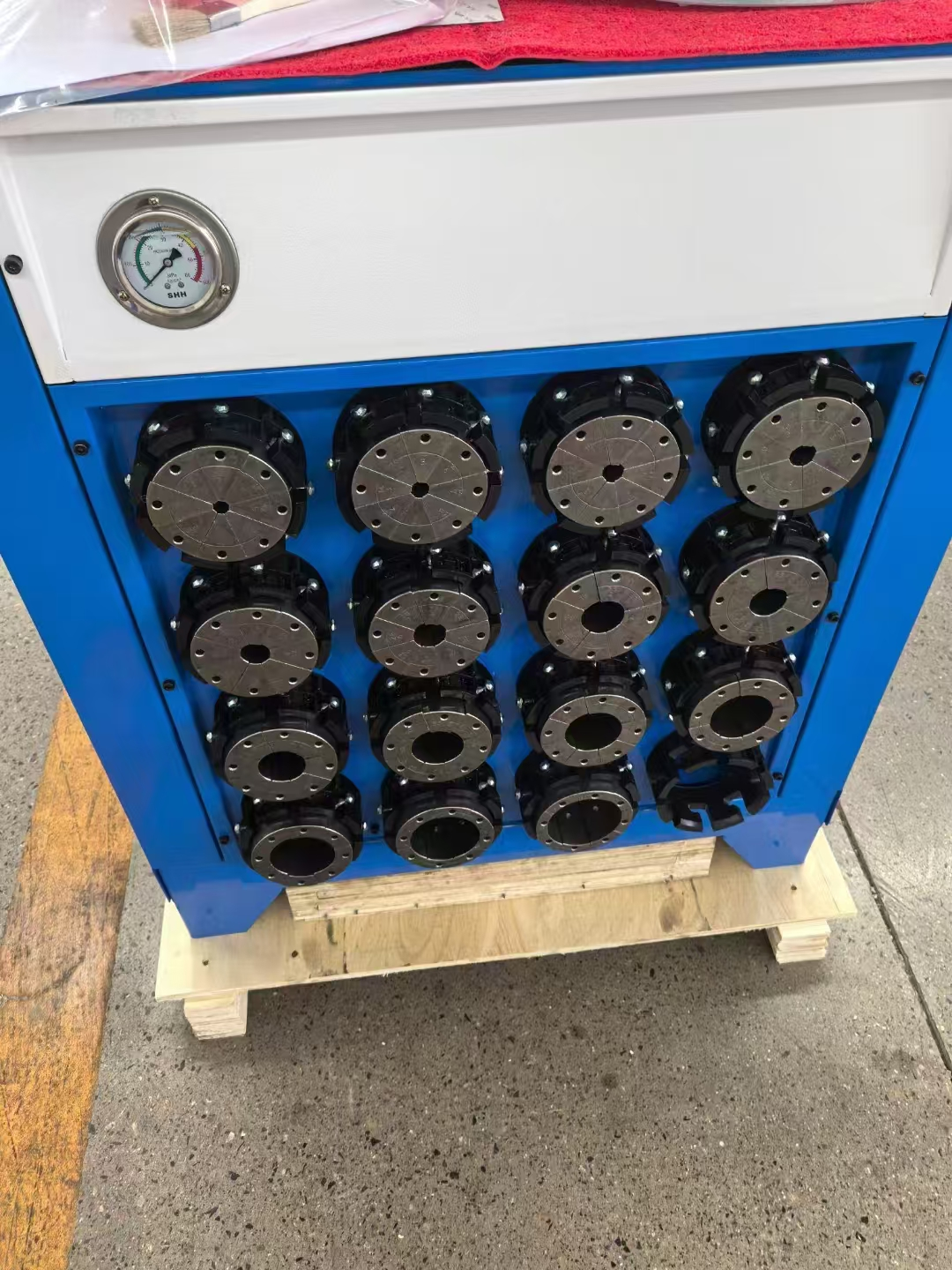

quantity of dies | 13 sets |
item diesNo. of | length 60mm(15,19,23,26) |
Length 70mm(31,36,41) |
Length 80mm(47,55,60) |
accuracy | 0.01mm |
output volume of pump | 10L |
system pressure | 31.5Mpa |
motor power | 4kw |
voltage | 110V/220V/380V/415V,50HZ/60HZ |
crimping force | 1000T |
work efficiency | 300pcs/h |
maximum open diameter | 145mm |
the max open tolerance | ±50mm |
package dimension | 700*880*1500mm |
machine dimension | 640*820*1400mm |
Net weight | 850kg |
Gross weight | 880kg |
TECHNICAL DATA
| Model | FY-CBY-51B Hose Pressing Machine |
| Crimping Range | 6-51(mm)(1/4~2") |
| Crimping Force | 1000(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 145mm |
| Die Sets | 13 |
work efficiency | 300pcs/h |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
| Control | PLC |
| Standard Voltage | 110V/220V/380V/415V 50/60Hz |
| Motor Power | 4(KW) |
| Length | 640(mm) |
| Width | 820(mm) |
| Height | 1400(mm) |
| Weight | 850(KG) |
NOTE
- Customized die sets are available;
- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
crimping range/skiving range | 6-51mm(1/4''-2''inner diameter of hose) |
quantity of dies | 13 sets |
item diesNo. of | length 60mm(15,19,23,26) |
Length 70mm(31,36,41) |
Length 80mm(47,55,60) |
accuracy | 0.01mm |
output volume of pump | 10L |
system pressure | 31.5Mpa |
motor power | 4kw |
voltage | 110V/220V/380V/415V,50HZ/60HZ |
crimping force | 1000T |
work efficiency | 300pcs/h |
maximum open diameter | 145mm |
the max open tolerance | ±50mm |

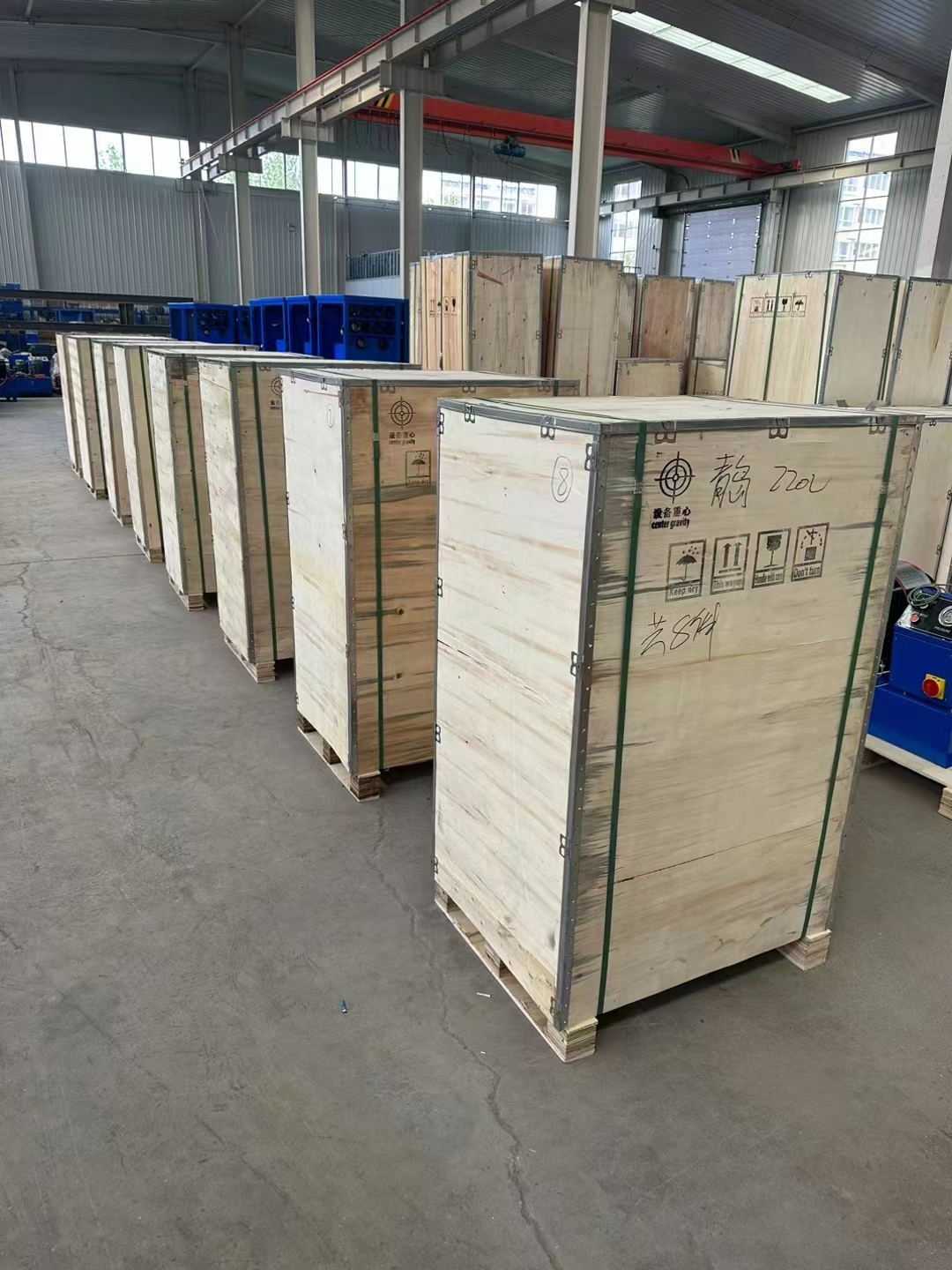

package dimension | 700*880*1500mm |
machine dimension | 640*820*1400mm |
Net weight | 850kg |
Gross weight | 880kg |
