1 Inch 7 Dies 1-4 Layer Hose Hydraulic Crimping Machine / Hose Crimping Machine High Pressure 6-25mm With Blue Color 12v/24V

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-25CZ
Certification :	CE
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

1 Inch 7 Dies 1-4 Layer Hose Hydraulic Crimping Machine / Hose Crimping Machine High Pressure 6-25mm With Blue Color 12v/24V

Product Description

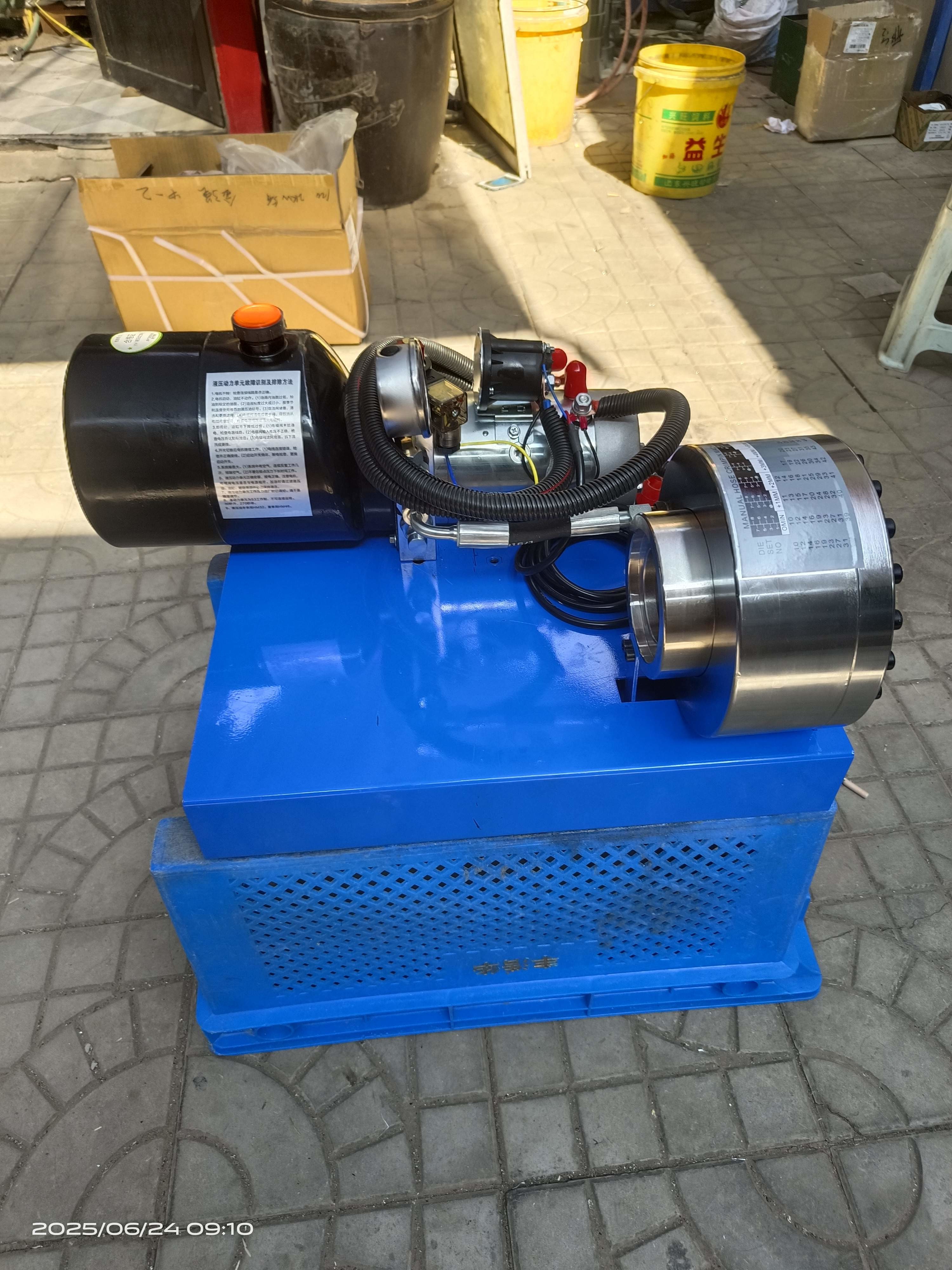

Introducing our 12V/24V 7 Dies 1 Inch Braided Hose Crimper, a battery-driven hydraulic hose pipe crimping machine designed for efficiency and versatility in various applications. This compact yet powerful tool is ideal for professionals working in automotive, construction, and agricultural industries.
Key Features
- Battery Operated: The dual voltage option (12V/24V) allows for flexibility and convenience, making it suitable for both on-site and workshop use.
- 7 Dies Included: The machine comes equipped with seven different crimping dies, accommodating hose sizes from 6mm to 25mm (1 inch), ensuring versatility for various hose types and applications.
- Robust Construction: Built with high-quality materials, our crimper guarantees durability and longevity, capable of withstanding the demands of heavy usage.
- User-Friendly Design: The lightweight design and ergonomic handle ensure comfortable operation, reducing user fatigue during extended use.
- Hydraulic Power: Utilizing hydraulic technology provides consistent crimping pressure, ensuring secure and reliable hose connections.
.

THE MOBILE CAR HOSE CRIMPER MACHINE'S LEADING ADVANTAGES
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit

TECHNICAL DATA

Model	FY-25CZ Pipe Crimping Machine
Crimping Range	6-25(mm)
Crimping Force	600(T)
Hose Size	1/4-1(inch)
Max. Opening	114(mm)
Die Sets	7
output volume of pump	4L
System Pressure	30(Mpa)
Accuracy	0.01(mm)
the max open tolerance	30 ±mm
Standard Voltage	12V/24(V)
Motor Power	1.5(KW)
Length	600(mm)
Width	450(mm)
Height	350(mm)
Weight	52(KG)

1 Inch 7 Dies 1-4 Layer Hose Hydraulic Crimping Machine / Hose Crimping Machine High Pressure 6-25mm With Blue Color 12v/24V

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range	6-25mm(1/4''-1''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.6m0.45m0.35m(0.1 m³)
Maximum open diameter	114mm
dies	7 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	52kg
packing dimension	620470370mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY25CZ is with high accuracy dial, 0.01mm.

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

► WIDE USAGE
FY-25CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
