2" Electric High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine Excavator Hose Press Tool

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-51BY
Certification :	CE
Price :	USD$ 1700/1650
Payment Terms :	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

2" Electric High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine Excavator Hose Press Tool

2" Electric High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine Excavator Hose Press Tool

DESCRIPTION

2" Electric High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine Excavator Hose Press Tool

Product Name: Portable Hydraulic Hose Crimping Machine
Model: Electric High Power Basic Model
Crimping Capacity: 2 Inch
Control System: Button Control
Included Accessories: 10 Dies

Key Features:

Powerful Performance: Designed for heavy-duty applications, providing reliable crimping for various hose types, including excavator hoses.
User-Friendly Button System: The intuitive button control system ensures ease of operation, making it suitable for users of all experience levels.
Portable Design: Lightweight and compact, allowing for easy transportation to job sites and versatile use in different environments.
Market Advantage:
This electric high model portable hydraulic hose crimping machine is ideal for professionals looking for a robust and efficient tool for hose pressing tasks.

MAIN ADVANTAGES

1. Big oil pump, efficient and long life

2. Multifunctional operate panel, easy to change between automatic and semi-auto

3. Pressure can be shown on the panel

4. Foot pedal as standard to make hands free

5. Working light to make crimping work more clear

2" Electric High Model Basic Model Button System 10 Dies Big Power Portable Hydraulic Hose Crimping Machine Excavator Hose Press Tool

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	10 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	2.5L/5L/10L(Optional)
system pressure	26Mpa/31.5Mpa(Optional)
motor power	3kw/4kw 1,2,3 phase (Optional)
voltage	220V/380V/415V(Customizable) 50/60Hz
crimping force	500T
work efficiency	200pcs/h
maximum open diameter	114mm
the max open tolerance	±30mm
package dimension	9006801450mm
machine dimension	8606401300mm
Net weight	310kg
Gross weight	320kg

TECHNICAL DATA

Model	FY-51BY Hose Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	30±mm
Die Sets	10
Maximum Open Diameter	114MM
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220v/240v/380v/415v(optional)
Motor Power	3(KW)
Length	860(mm)
Width	640(mm)
Height	1300(mm)
Weight	310(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;

► TWO MODE EASY ALTERNATED

Automatic or semi-automatic mode can be choosen

► FOOT PEDAL SWITCH

Free hands for big hose, more convenient; Double usage, both closing and opening function

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

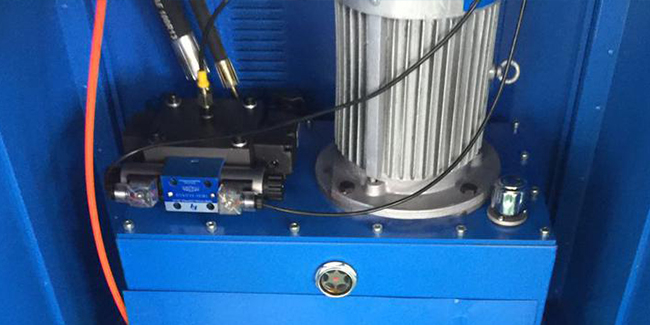

► HIGH QUALITY MOTOR

Copper wire aluminium motor, goof heat releasing

► SAFE DIE SET STORAGE

A box inside the machine body for storing the die sets

► APPLICATIONS
