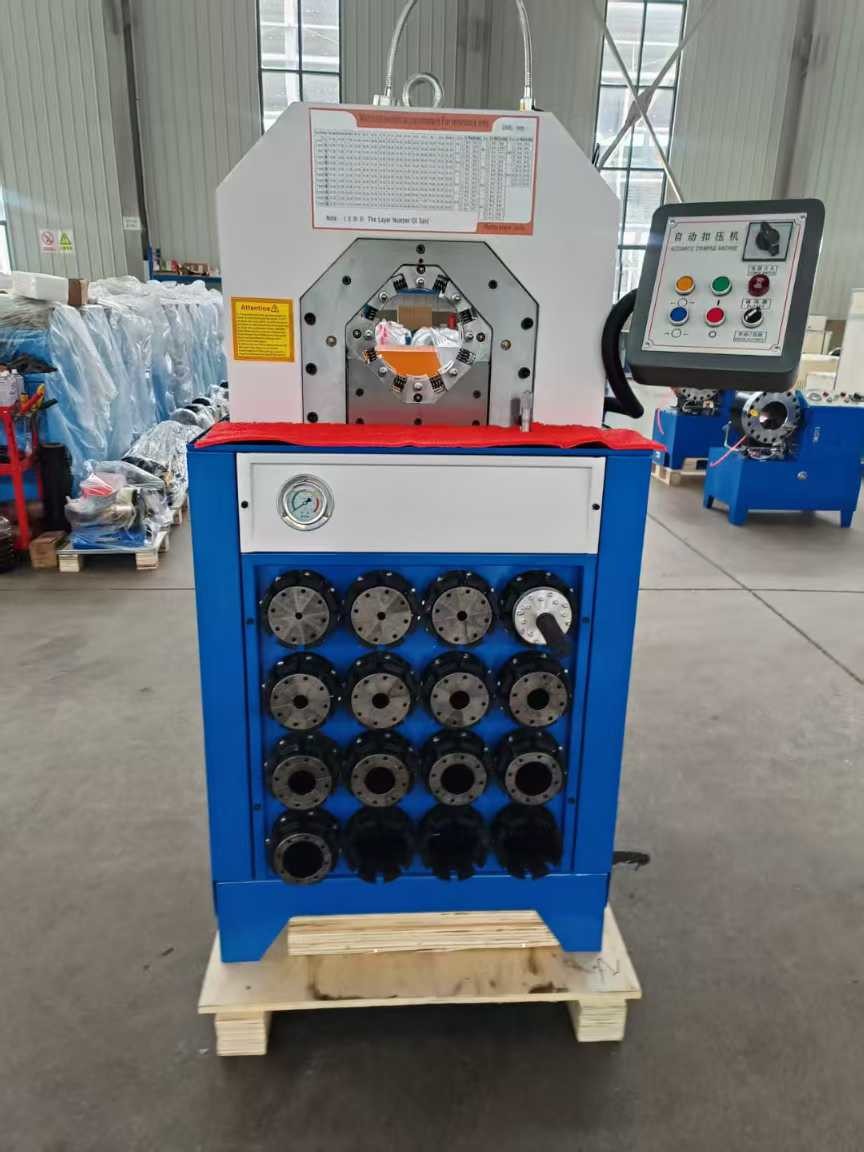

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    Ask Lasest Price
    Brand Name : FY
    Model Number : FY-CBK-51B
    Certification : CE
    Price : USD$5000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    Ultra-Thin Model Nice Design 2 Inch Button Control Systerm 300 Pieces/Hour With/Without Fast Change Moulds Tools Hydraulic Hose Pressing Machine Hydraulic Fitting Press Big Elbow


    FY-CBK-51B DECRIPTION


    Ultra-Thin Hydraulic Hose Pressing Machine with Button Control System

    Introducing our Ultra-Thin Hydraulic Hose Pressing Machine, featuring a sleek design and high efficiency. Key specifications include:

    • 2 Inch Capacity: Designed to handle hoses up to 2 inches, making it versatile for a variety of hydraulic applications.
    • High Output of 300 Pieces/Hour: Engineered for rapid production, significantly improving your operational efficiency.
    • User-Friendly Button Control System: Intuitive controls allow for easy operation, ensuring precise crimping with minimal effort.
    • Fast Change Mould Tools Available: Options for quick-change moulds facilitate seamless transitions between different fittings, enhancing workflow.

    Ideal for professionals in the hydraulic industry, this machine combines modern design with outstanding performance. Upgrade your workshop with this efficient and stylish hose pressing machine today!

    Precautions before operation
    1. When using the tube press for the first time, it should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
    2. When using the pipe press in winter, it should be withheld for 20 to 30 times without load to increase the oil temperature.
    3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
    4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
    5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
    6. Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

    FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.


    MAIN FEATURES


    1. Thin head, easy fed for bend fitting;

    2. Big crimping power;

    3. High accuracy.

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    crimping range/skiving range
    6-76mm(1/4''-3''inner diameter of hose)
    quantity of dies
    13 sets
    item diesNo. of
    length 60mm(15,19,23,26)
    Length 70mm(31,36,41)
    Length 80mm(47,55,60)
    accuracy
    0.01mm
    output volume of pump
    10L
    system pressure
    31.5Mpa
    motor power
    4kw
    voltage
    110V/220V/380V/415V,50HZ/60HZ
    crimping force
    1000T
    work efficiency
    300pcs/h
    maximum open diameter
    145mm
    the max open tolerance
    ±50mm
    package dimension
    700*880*1500mm
    machine dimension
    640*820*1400mm
    Net weight
    850kg
    Gross weight
    880kg

    TECHNICAL DATA


    ModelFY-CBY-51B Hose Pressing Machine
    Crimping Range6-51(mm)(1/4~2")
    Crimping Force1000(T)
    Hose Size1/4-2(inch)
    Max. Opening145mm
    Die Sets13
    work efficiency
    300pcs/h
    System Pressure31.5(Mpa)
    Accuracy0.01(mm)
    ControlPLC
    Standard Voltage
    110V/220V/380V/415V
    50/60Hz
    Motor Power4(KW)
    Length640(mm)
    Width820(mm)
    Height1400(mm)
    Weight850(KG)

    2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools2 Inch Button Control Systerm Hydraulic Hose Pressing Machine With Fast Change Mould Tools

    NOTE


    - Customized die sets are available;

    - Special voltage 110V/220V/380V/415V 50/60Hz are availbale;


    crimping range/skiving range
    6-51mm(1/4''-2''inner diameter of hose)
    quantity of dies
    13 sets
    item diesNo. of
    length 60mm(15,19,23,26)
    Length 70mm(31,36,41)
    Length 80mm(47,55,60)
    accuracy
    0.01mm
    output volume of pump
    10L
    system pressure
    31.5Mpa
    motor power
    4kw
    voltage
    110V/220V/380V/415V,50HZ/60HZ
    crimping force
    1000T
    work efficiency
    300pcs/h
    maximum open diameter
    145mm
    the max open tolerance
    ±50mm
    package dimension
    700*880*1500mm
    machine dimension
    640*820*1400mm
    Net weight
    850kg
    Gross weight
    880kg
