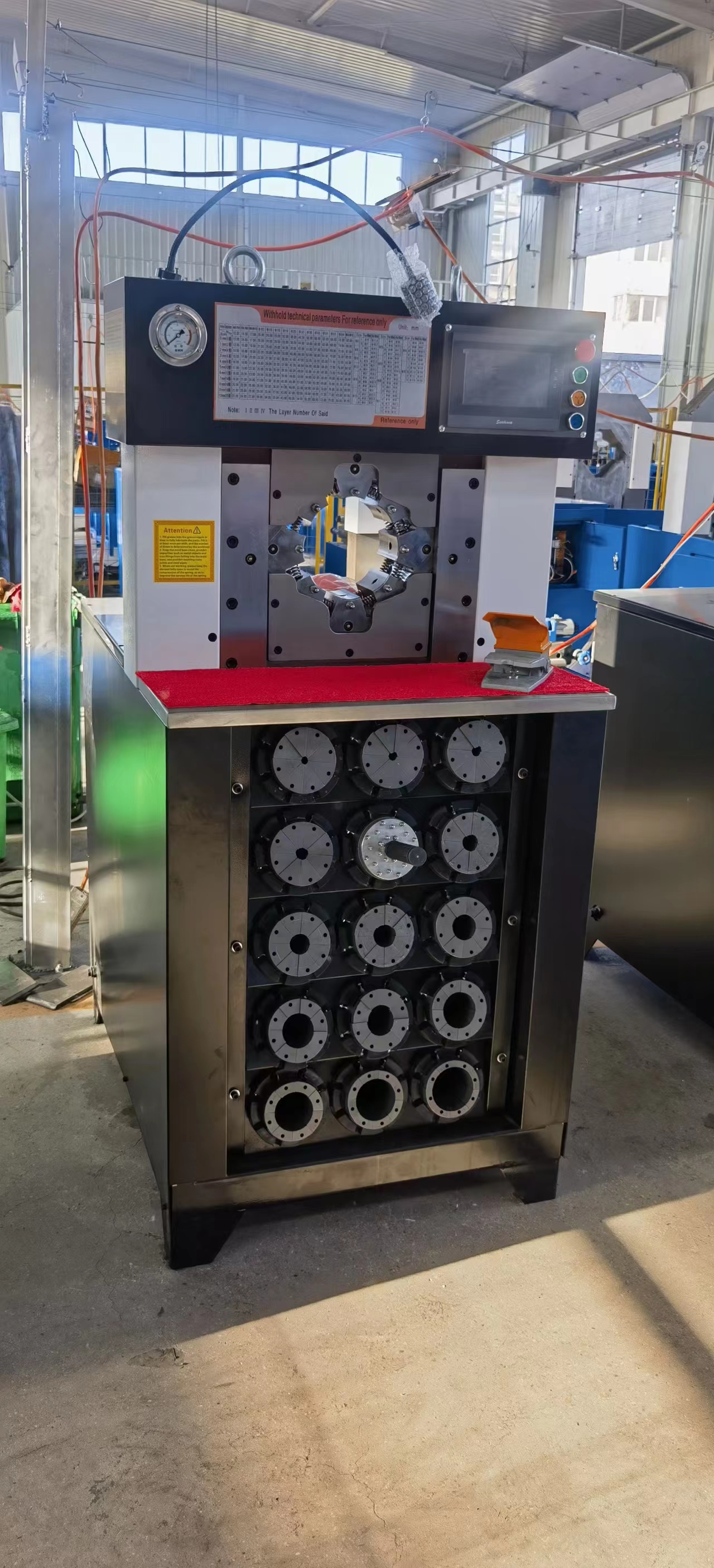

Hydraulic Hose Crimping Machine CBK-120 Large Range 3 inch 6 layers
hose suitable for device
HYDRAULIC HOSE CRIMPING MACINE DESCRIPTION
Hydraulic Hose Crimping Machine CBK-120 is designed for crimping
hydraulic hoses up to 3 inches in diameter and with up to 6 layers
of reinforcement. Hydraulic hose Crimping Machine is a powerful
machine suitable for use in heavy-duty industrial applications
where large hoses are used. The Hydraulic hose Crimping Machine
CBK-120 is a reliable and easy-to-use machine that ensures a secure
and precise crimp every time. To ensure that it is suitable for
your particular device, you should check the specifications of your
hydraulic hose to ensure that it falls within the range of the
Hydraulic hose Crimping Machine CBK-120 machine.
The CBK-120 Large Range Hydraulic hose Crimping Machine is a tool
used for crimping air conditioning pipes. Hydraulic hose Crimping
Machine has a large crimping range of 6-76mm,that mean is from 2
inch to 3 inch, making it suitable for a variety of pipe sizes.
Hydraulic hose Crimping Machine is powered by an electric motor and
hydraulic system, making it easy to use and efficient. Hydraulic
hose Crimping Machine comes with a set of dies that can be changed
to accommodate different pipe sizes. The crimping process helps to
ensure a secure connection between the pipe and fittings,
preventing leaks and other issues.
Take out the crimped hose assembly and use a vernier caliper to
check the outer diameter of the crimped joint jacket. If Ac pipe
crimping machine does not match the parameter table, fine-tune the
micrometer scale until the crimping of the next hose meets the
requirements.Ac hydraulic hose crimping machine is specially designed for big elbow
fittings and abnormal shape couplings jointing. It has a thin
crimping unit with large opening stroke, can let long degree
fitting crossing easily.
HYDRAULIC HOSE CRIMIPNG MACHINE'S HOT SELLING AND MAIN FEATURES
► UC control technology, crimping more accurate with high stability
► Quick change rack and die quick change technology, improve
productivity
► Emergency stop device, make crimping more safe
main product
Hydraulic Hose Crimping Machine
Manual Hose Crimping Machine
Rubber Hose Crimping Machine
DX68 Hose Crimping Machine
AC Hose Crimping Machine
TECHNICAL DATA
| Model | FY-CBK-120 |
| Crimping Range | 6-76(mm) |
| Crimping Force | 1500(T) |
| Hose Size | 1/4-3(inch) |
| Max. Opening | 53±mm |
| Die Sets | 15 |
Maximum Open Diameter | 158MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
Work Efficiency | pcs/h |
| Standard Voltage | 380v |
| Motor Power | 5.5(KW) |
| Length | 1000(mm) |
| Width | 800(mm) |
| Height | 1630(mm) |
| Weight | 1250(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 380V is availbale;
| crimping range | 6-76 mm |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw |
| voltage | 380 |
| crimping force | 1500t |
| work efficiency | pcs/h |
| maximum open diameter | 158mm |
| the max open tolerance | +53mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1050*850*1680mm |
| net weight | 1250 kg |
| gross weight | 1300kg |
► LARGE PLC PANEL
Advanced PLC panel with high stability, convenient operating
►QUICK CHANGE TOOL FOR DIES
Make die set changing more convenient and supply a safe storage of
the die sets
► WIDE OPENING FOR CRIMPING UNIT
The crimping part can open up to 53mm, enable an elbow fitting go
through
FACTORY WITH MORE THAN 14 YEARS
Our Factory has been in hydraulic hose crimping machine
manufacturing and designing since 2010.
► APPLICATIONS
FY-CBK-120 is especially designed for big elbow fittings crimping, it is
wodely used in car ac hose, hydraulic oil hose, air hose, water
pipe, industrial hoses, wires and cables crimping work.
