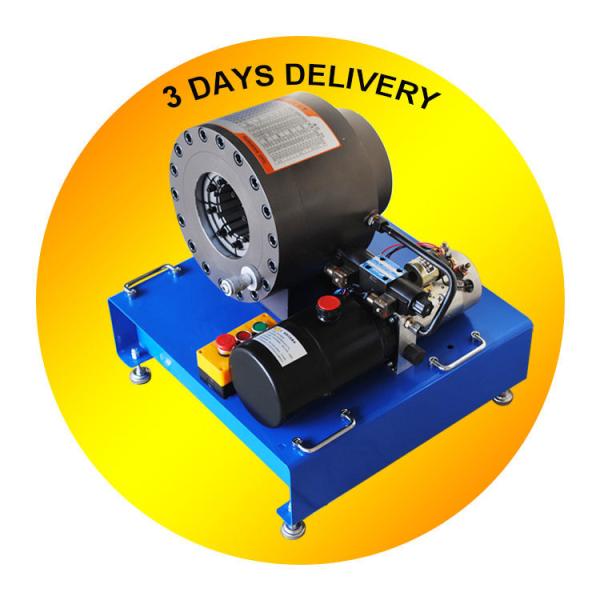

6-51mm Portable Hose Crimping Machine 1/4"-2" 12 Volt Hydraulic AC Hose Crimper

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-51CZ
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

6-51mm Portable Hose Crimping Machine 1/4"-2" 12 Volt Hydraulic AC Hose Crimper

6-51mm 1/4"-2" 12 volt portable hydraulic hose crimper

THE HYDRAULIC HOSE CRIMPING MACHINE'S DESCRIPTION
FY-51CZ hydraulic hose crimper machine is powered by 12V/24V DC. Average vehicle batteries can meet the power requirements of the crimper. There are few environmental constraints.

ADVANTAGES
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit

TECHNICAL DATA

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	114(mm)
Die Sets	10
output volume of pump	4L
System Pressure	30(Mpa)
Accuracy	0.01(mm)
the max open tolerance	30 ±mm
Standard Voltage	12V/24(V)
Motor Power	3.6(KW)
Length	650(mm)
Width	600(mm)
Height	600(mm)
Weight	170(KG)

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
