South Africa 1-4 Layer Hose Hydraulic Crimping Machine High Pressure 6-51mm

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-51CZ
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

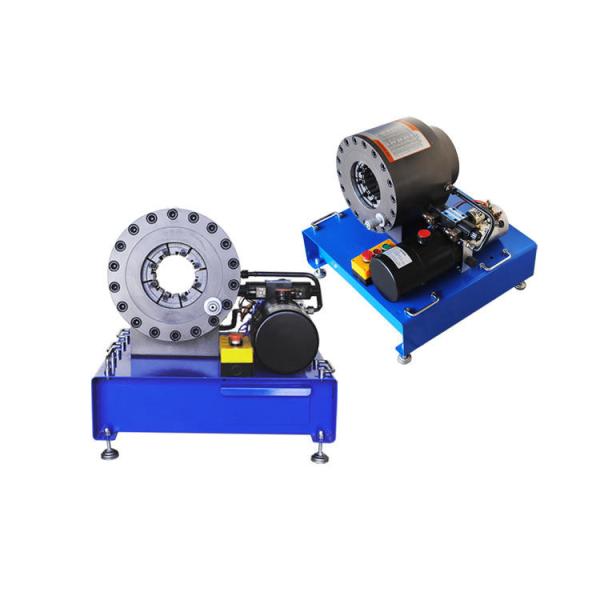

South Africa 1-4 Layer Hose Hydraulic Crimping Machine High Pressure 6-51mm

South africa high pressure techmaflex hydraulic hose crimping machine

DESCRIPTION
FY-51CZ hose crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.

OUR MACHINE'S LEADING ADVANTAGES:
► Use the 12V/24V battery as a power, crimping force can be reach 2800 KN
► The stable quality crimping performance find expression in high pressure
► The most popular applications for these suitable are in repair shop and industrial maintenance unit

TECHNICAL DATA

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	114(mm)
Die Sets	10
output volume of pump	4L
System Pressure	30(Mpa)
Accuracy	0.01(mm)
the max open tolerance	30 ±mm
Standard Voltage	12V/24(V)
Motor Power	3.6(KW)
Length	650(mm)
Width	600(mm)
Height	600(mm)
Weight	170(KG)

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

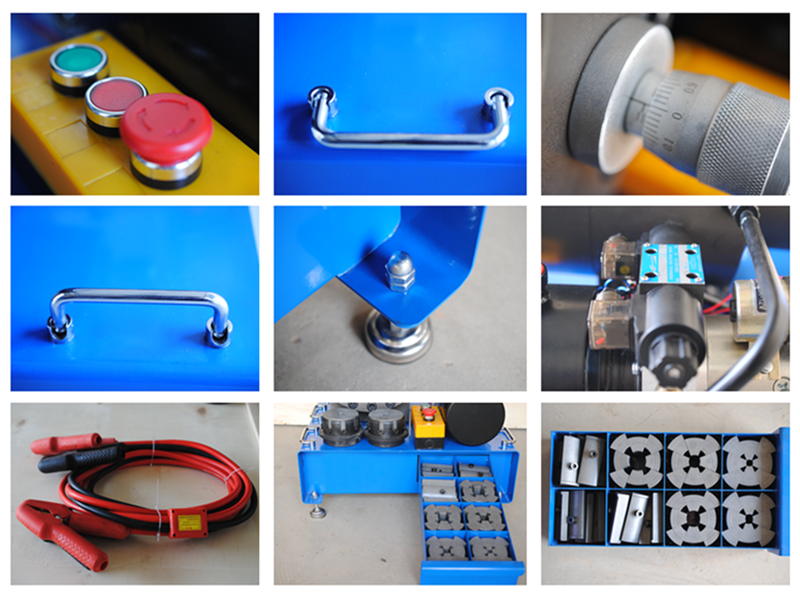

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
