22mm Wire Reinforced Hydraulic Rubber Hose Spiraled Extensible Industrial Rubber Hose

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-hydraulic hose-223
Certification :	iso9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 Meter/Meters per Day hydraulic rubber hose
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

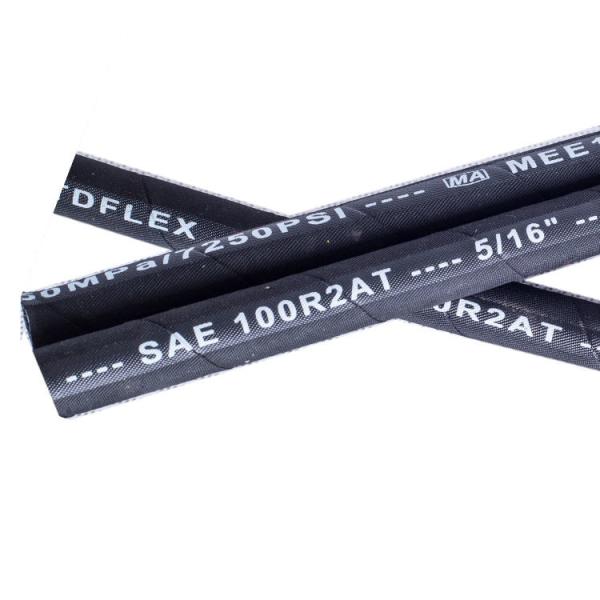

22mm Wire Reinforced Hydraulic Rubber Hose Spiraled Extensible Industrial Rubber Hose

22mm industrial flexible extensible durable quality steel reinforced spiraled synthetic hydraulic rubber pipe hose

The characteristics of hydraulic rubber hose

1.High pressure resistance

2.High temperature resistance

3.Soft and portable

4.Deformation resistant

5.Beautiful appearance

6.Striated, smooth or cloth surface

7.Good Insulation and abrasion resistance

8.Steel wire braided or spiraled layers reinforcement

9.Durable with high quality

10.Free sample

11.Fast delivery

12.Temperature Range:-40°C To +100°C (-40°F To +212°F)

SAE100R1AT/DIN(EN853)1ST,1SN/EN857 1SC
Specification inch/mm		OD	Working pressure Mpa / PSI	Bar
1/4"	6	13.7	32 / 4640	320
5/16"	8	15.7	28 / 4060	280
3/8"	10	17.7	26 / 3770	260
1/2"	13	20.7	23 / 3335	230
5/8"	16	24	18 / 2610	280
3/4"	19	27.5	16 / 2320	160
1"	25	35	12 / 1740	120
1-1/4"	32	42	9 / 1305	90
1-1/2"	38	48.5	7 / 1015	70
2"	51	61.5	4 / 580	40

SAE100R2AT/DIN(EN853)2SN,2ST/EN857 2SC
Specification inch/mm		OD	Working pressure Mpa / PSI	Bar
1/4"	6	15.7	60 / 8700	600
5/16"	8	17.7	55 / 7975	550
3/8"	10	19.7	53 / 7685	530
1/2"	13	22.5	40 / 5800	400
5/8"	16	26	25 / 3625	250
3/4"	19	29	21.5 / 3117	215
1"	25	37	18 / 2610	180
1-1/4"	32	43.5	16 / 2320	160
1-1/2"	38	50.5	14 / 2030	140
2"	51	63.6	8 / 1160	80

EN856 4SC,4SH/4SP,GB/T
Specification inch/mm		OD	Working pressure Mpa / PSI	Bar
1/4"	6	19	100/14500	1000
5/16"	8	20.5	80/11600	800
3/8"	10	24	70 / 10150	700
1/2"	13	27	60 / 8700	600
5/8"	16	30	55 / 7975	550
3/4"	19	33	42 / 6090	420
1"	25	39	35 / 5075	350
1-1/4"	32	49	32.5 / 4713	325
1-1/2"	38	56	29 / 4205	290
2"	51	69	25 / 3625	250

Notice about the hydraulic rubber hose

Product name:	Hydraulic Hose High Pressure Rubber Hose
Brand Name:	OEM/ODM
Processing Service:	Moulding, Cutting
Material:	Steel Wire
Surface:	Cloth Wrapped Surface
Working temperature:	-40~+120
Size:	Customized Size
Length:	Customized Length
Pressure:	1-110Mpa
Feature:	spiralled&braided
Application:	Carry Hydraulic Fluids&Gas
Model Number:	FY-hydraulic hose-223

1.The hose should not be used to exceed the designed pressure.

2.The temperature of the medium being conveyed through the hose should be in the normal case, or reduce the use life of the hose.

3.The hose should not be used less than the minimum bend radius of the hose, in order to avoid bending near the pipe joints .

4.The hose should be handled carefully, and should not drag on the sharp and rough surface, should not be bent and squashed.

5.Pls keep the hose clean and prevent external objects into the hose, in case of hindering the transmission fluid and damaging the equipment.

6.If the hose’s weight cause excessive deformation,the hose should be supported.

Model No.	NEW Hose Fitting
Material	carbon steel or stainless steel
Medium	oil,water,gas,chemical engineering
Quality	international standard
Advantage	over 20 years experience
Certificate	ISO 9000, SGS
Color	Customized
Size	Customized
Logo	Customized logo or our Logo
OEM Accepted	Yes
Type	Elbow,tee,union,connector,coupling,cross,etc
Connection	Female/male
Technology	CNC machining
Surface Treatment	Trivalent Silver Zinc, Trivalent Yellow Zinc, Hexavalent Yellow ZInc, Chrome Plate, etc.
Application	physical construction, hydraulic installation, auto parts,sleeves,etc
Packing	internal polybag and outer carton or as customer request
