6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-CBK-120
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

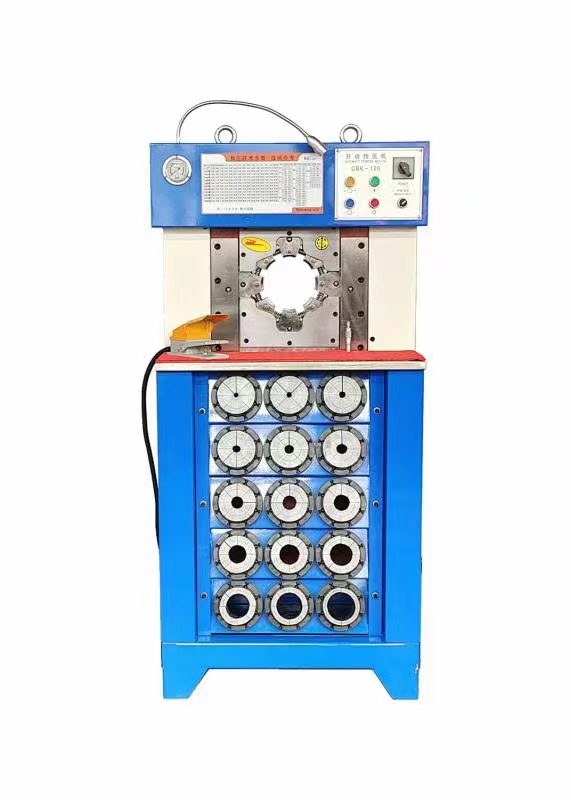

6-76mm Hydraulic AC Hose Crimper Heavy Duty Automotive AC Crimping Tool

Car AC Hose Crimping Machine Heavy Duty Automotive Ac Crimping Tool

DESCRIPTION

FY-CBK-120 is the new type 2022.

It is capable of crimping hydraulic hose up to 3 inch and 2 inch 6SP stainless steel braided hoses. With super thin crimping head and vertical movement, it is the ideal choice for elbow fittings.

ADVANTAGES

► Advanced control system, high stability and productivity

► Quick die installing, make crimping more easily and save time

► Double use foot pedal, free both of the hand for carrying big or heavy work piece

crimping range/skiving range	6-76mm(1/4''-3''inner diameter of hose)
quantity of dies	15 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L/16L(Optional)
system pressure	31.5Mpa
motor power	5.5kw,3 phase
voltage	380V
crimping force	1500T
work efficiency	pcs/h
maximum open diameter	158mm
the max open tolerance	±53mm
package dimension	11009001730mm
machine dimension	10008001630mm
Net weight	1250kg
Gross weight	1300kg

TECHNICAL DATA

Model	FY-CBK-120 AC Hose Crimping Machine
Crimping Range	6-76(mm)
Crimping Force	1500(T)
Hose Size	1/4-3(inch)
Max. Opening	158(mm)
Die Sets	15
The Max Open Tolerance	+53mm
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Output Volume Of Pump	10L/16L
Standard Voltage	380(V)
Motor Power	5.5(KW)
Length	1000(mm)
Width	800(mm)
Height	1630(mm)
Weight	1250(KG)

NOTE

• " * " for non standard mold

• Customized die sets are available

• Special voltage 380V are availbale

► SUPER THIN CRIMPING HEAD

New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes

► NEW DIE SETS

15 die sets, range from 6mm to 76mm, suitable for hose from 1/4 to 3 inch with six spirals crimping

► HEAVY DUTY MACHINE RACK

With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals

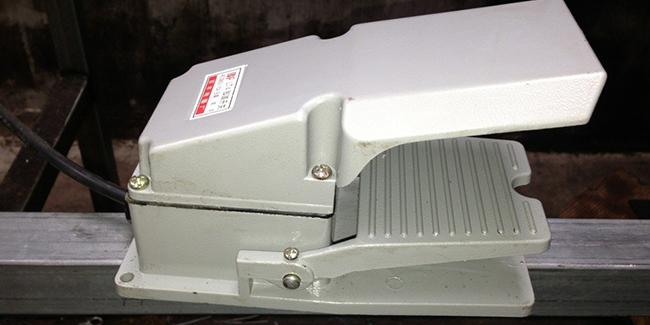

► BIG DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much

► OEM SERVICE AVAILABLE

► APPLICATION SHOW

FY-CBK-120 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.
