51mm Hose Pressing Machine 220V PLC Crimper CE RoHS CBK-51B

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-CBK-51B
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

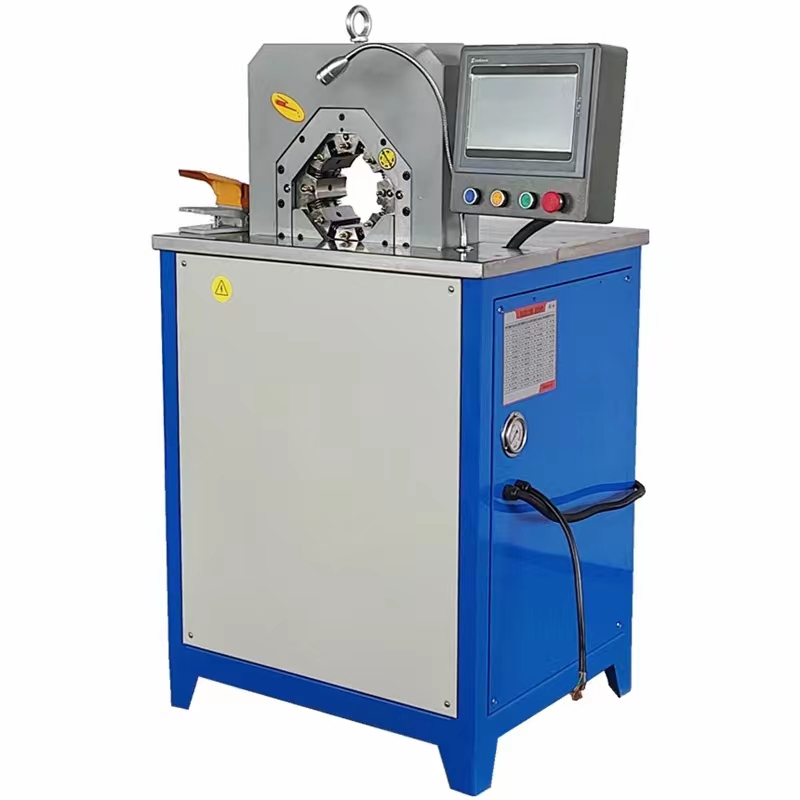

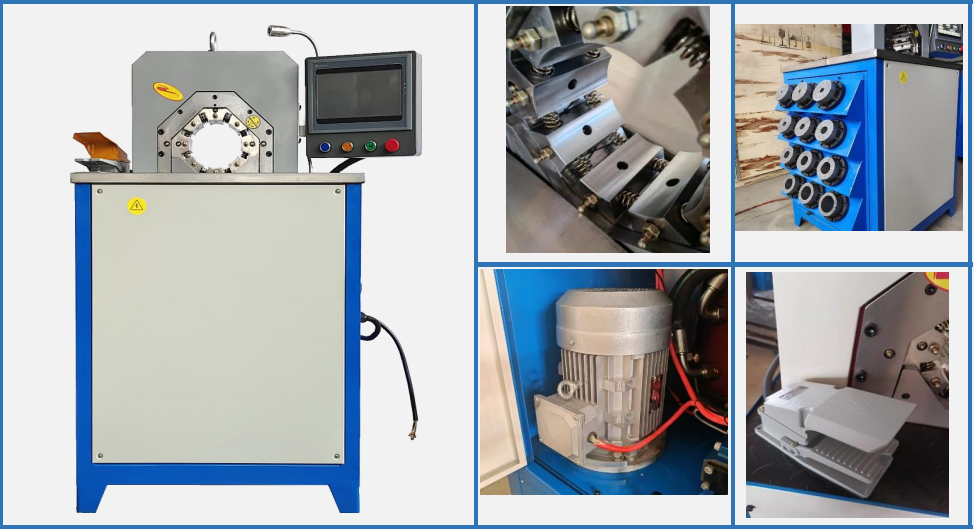

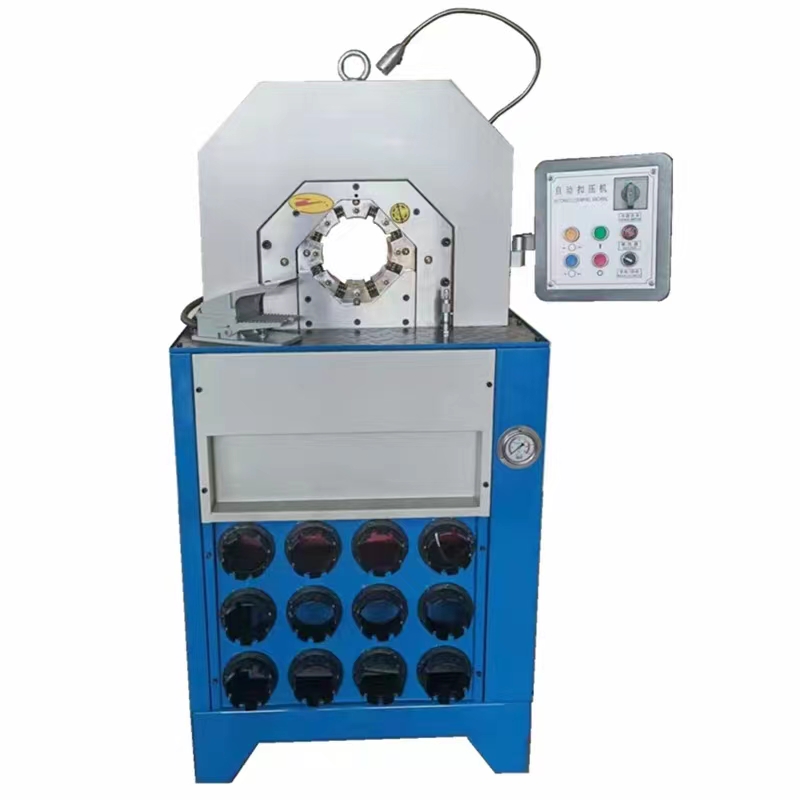

51mm Hose Pressing Machine 220V PLC Crimper CE RoHS CBK-51B

51mm Hydraulic Hose Crimping Machine CBK-51B 220V CE RoHS

THE DECRIPTION OF MACHINE

Cleaning: If the hydraulic oil is contaminated, all hydraulic oil must be replaced and the oil tank of the crimping machine must be cleaned. Keep the cylinder of the press machine clean: When adding or refilling the oil tank of the press machine with hydraulic oil, ensure that the area around the filter box cover is clean. Do not bring dirt into the crimping system.

FY-CBK-51B hose pressing machine is famous for its intelligent control system and large opening mouth. With a super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	13 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L
system pressure	31.5Mpa
motor power	4kw
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	1000T
work efficiency	300pcs/h
maximum open diameter	145mm
the max open tolerance	±50mm
package dimension	7008801500mm
machine dimension	6408201400mm
Net weight	850kg
Gross weight	880kg

MAIN FEATURES

1. Thin head, easy fed for bend fitting;

2. Big crimping power;

3. High accuracy.

TECHNICAL DATA

Model	FY-CBY-51B Hose Pressing Machine
Crimping Range	6-51(mm)(1/4~2")
Crimping Force	1000(T)
Hose Size	1/4-2(inch)
Max. Opening	145mm
Die Sets	13
work efficiency	300pcs/h
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Control	PLC
Standard Voltage	110V/220V/380V/415V 50/60Hz
Motor Power	4(KW)
Length	640(mm)
Width	820(mm)
Height	1400(mm)
Weight	850(KG)

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;

crimping range/skiving range	6-51mm(1/4''-2''inner diameter of hose)
quantity of dies	13 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	10L
system pressure	31.5Mpa
motor power	4kw
voltage	110V/220V/380V/415V,50HZ/60HZ
crimping force	1000T
work efficiency	300pcs/h
maximum open diameter	145mm
the max open tolerance	±50mm
package dimension	7008801500mm
machine dimension	6408201400mm
Net weight	850kg
Gross weight	880kg
