1.5 Inch Portable Hydraulic Hose Crimper 38mm Hydralok Crimper High Pressure

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-P38
Certification :	CE
Price :	USD$ 1600/1500/1400/1300
Payment Terms :	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

1.5 Inch Portable Hydraulic Hose Crimper 38mm Hydralok Crimper High Pressure

38mm hydralok hoses crimping machine for 1.5inch hydraulic crimping

DESCRIPTION

1.First in plastic wrap;
2.Then in the new strong wooden case.
3.as your request.

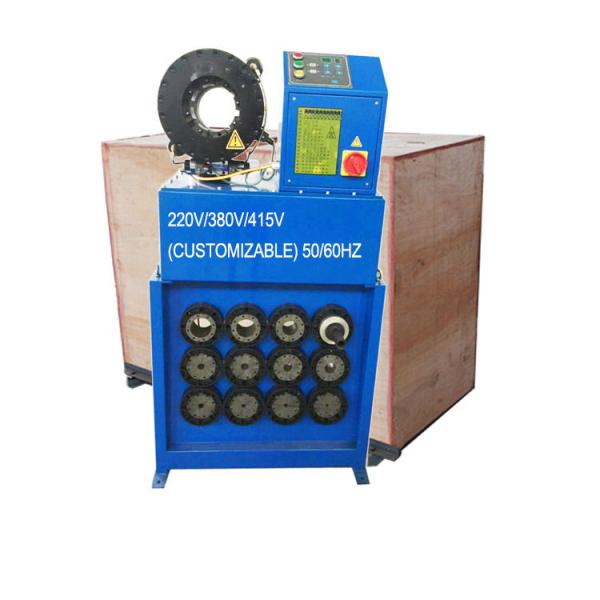

FY-P38 high pressure hose crimper is with crimping ability from 6mm to 38mm (1/4'' to 1.5'') for high pressure hydraulic hose. It is with quick change tool for die sets and die rack, which support a safe place for dies.

MAIN FEATURES
1) Famous Brand valve system, high quality, long using time, low maintenance cost
2) Foot pedal frees the operator's hand for holding big size hydraulic hose
3) Advanced Dash control, multifunction for crimping work
4) Quick change for die sets enable die sets change all at one time

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

TECHNICAL DATA

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38(mm)
Crimping Force	300(T)
Hose Size	1/4-1.5(inch)
Max. Opening	20±mm
Die Sets	8
Maximum Open Diameter	104MM
System Pressure	26(Mpa)/31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220v/240v/380v/415v(optional)
Motor Power	3(KW)/4(KW)
Length	950(mm)
Width	630(mm)
Height	700(mm)
Weight	275(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

crimping range	6-38mm(1/4''-1.5''inner diameter of hose)
Rated pressure	26Mpa/31.5Mpa(Optional)
The largest crimping pressure	300T
Rular precision	0.01mm
Output volume of pump	2.5L/5L(Optional)
Net weight	275kg
Work efficiency	200pcs/h
size	950630700 mm
dies	8 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47,55,60)

► ADVANCED PLC SYSTEM
Multifucntional control panel with different operation mode

► DIE SETS
8 die sets hardness 59-63HRC, with quick change tool, productivity improve much.

► FAMOUS BRAND MOTOR
World famous motor with high stability

► ONE PIECE FORGED OIL CYLINDER
Forged cylinder has higher anti wear ability compared with traditional technology

► APPLICATIONS
FY-P38 is a high configured hose crimper, it has the ability of crimping high pressure stainless steel braided hydraulic oil hose, industrial fexible pipes, air or water hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.
