31.5Mpa 380V DX68 Hose Crimping Machine For Pipe Fitting Pressing
DESCRIPTION
10 sets complete dies for the hydraulic hose from 1/4'' to 2'',
Die sets use high hardness special mould steel, under normal use,
the die sets can be used for more than 10 years without problem.
The die sets are changed by the special fork along with the
crimping machine.

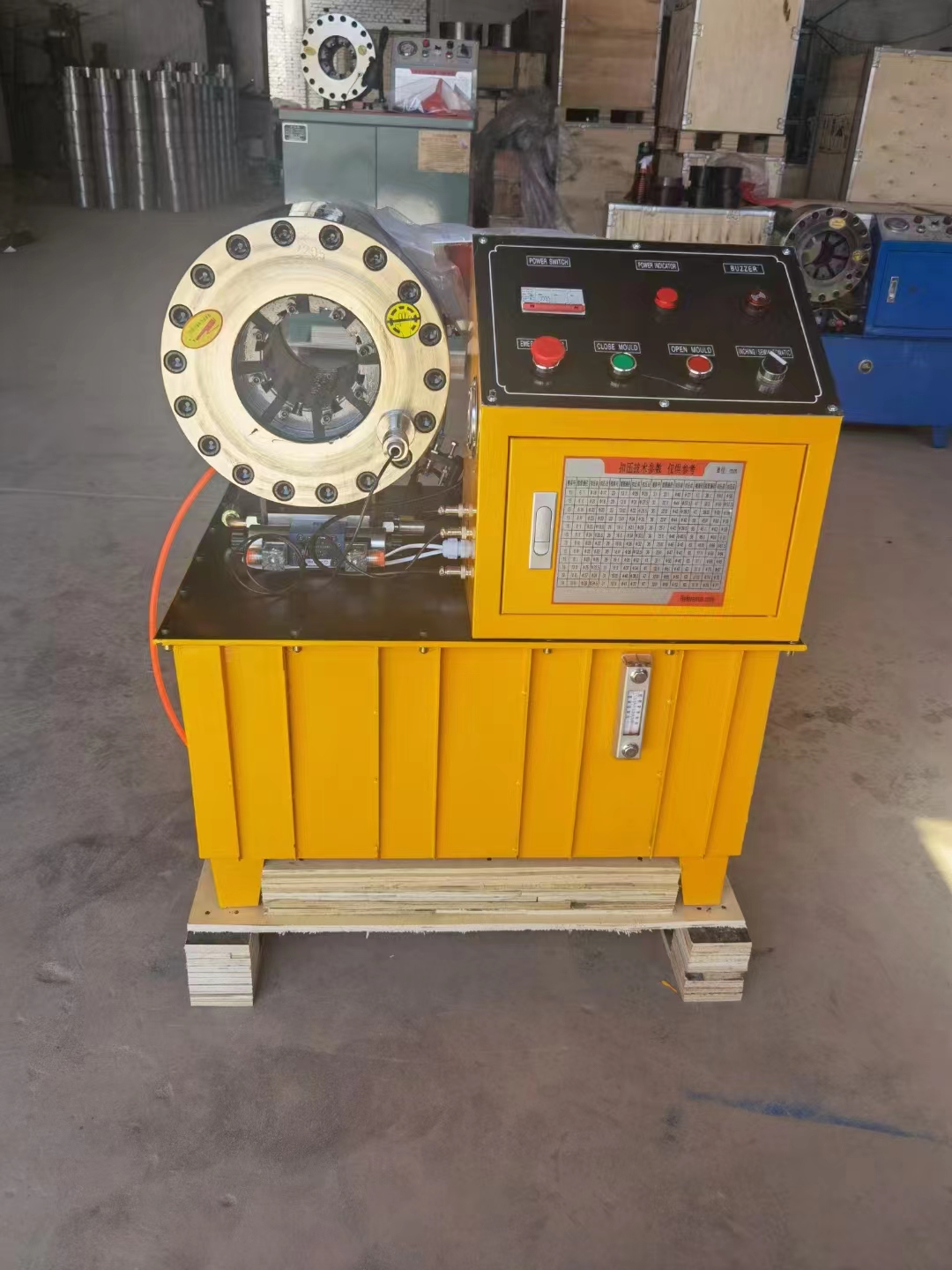

FY-DX68 is a hot sale domestic design hose crimping machine based on DX68
series. It provide 600T crimping force, can be worked automatically
or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.
MAIN FEATURES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
crimping range | 6-51mm(1/4''-2''inner diameter of hose) |
quantity of dies | 10 sets |
item diesNo. of | length 60mm(15,19,23,26) |
Length 70mm(31,36,41) |
Length 80mm(47,55,60) |
accuracy | 0.01mm |
output volume of pump | 2.5L/5L/10L(Optional) |
system pressure | 26Mpa/31.5Mpa(Optional) |
motor power | 3kw/4kw 1,2,3 phase (Optional) |
voltage | 220V/380V/415V(Customizable) 50/60Hz |
crimping force | 600T |
work efficiency | 200pcs/h |
maximum open diameter | 114mm |
the max open tolerance | ±30mm |
machine dimension | 730*480*740mm |
package dimension | 1070*640*1150mm |
Net weight | 245kg |
Gross weight | 260kg |
TECHNICAL DATA
| Model | FY-DX68 Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
Maximum Open Diameter | 114MM |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
Work Efficiency | 200 pcs/h |
| Standard Voltage | 220(V)/380(V) |
| Motor Power | 3(KW)/4(KW0 |
| Length | 730(mm) |
| Width | 480(mm) |
| Height | 740(mm) |
| Weight | 245(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
► DIE SETS WITH HIGH HARDNESS
10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
► WORKING LIGHT
Make crimping more safe and easy
► PEDAL SWITCH
Foot pedal is standard supplied, the advantage is it can free the
hand, so even for big size crimping, crimping will be easy
► OEM SERVICE
Customized color and Customized outlook for hose crimping machine.
OEM service available for all our machines.
► APPLICATION FIELD
The basic fucntion of a hose crimping machine is for crimping hose
assembly, but a hose crimping machine can not only do rubber hose
crimping, but can be used for quick jointing of other materials,
like cables, low pressure water pipes, wires, ropes, automotive
brake lines, etc.
