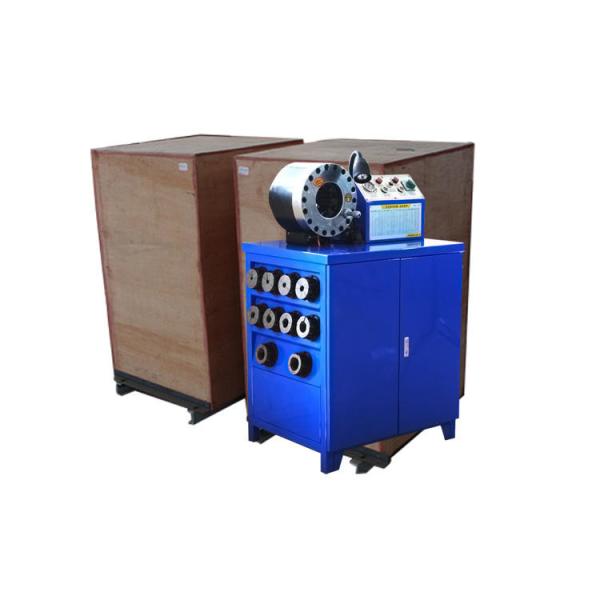

6-51mm/(1/4-2'') rubber product making machinery hydraulic hose
clamp machine
OUR APPLIANCE DESCRIPTION
Regularly replace the hydraulic oil and filter. Hydraulic oil
contains a variety of additives, these additives can prevent oil
deterioration. However, it will lose its effectiveness after using
it for a period of time. Therefore, the oil should be changed
regularly to ensure that the additives are effective. The crimping
machine filter can only absorb a limited number of dirt particles
and other impurities from the oil. Please change the oil return
filter of the hydraulic oil tank every 1000 working hours, and
clean the suction filter of the hydraulic oil tank of the pipe
crimping machine when changing the hydraulic oil, so as to keep the
pipe press system clean.FY-51BY is a the third generation among the domestic types. It
provide 600T crimping force, can be worked automatically or
manually depends on different need. Foot pedal can make the hand free during crimping.
MAIN ADVANTAGES
1. Forged crimping clylinder, high hardness;
2. Multifunctional operate panel, easy to change between automatic
and manual;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
6. Side die set install design, more covenient.
crimping range/skiving range | 6-51mm(1/4''-2''inner diameter of hose) |
quantity of dies | 10 sets |
item diesNo. of | length 60mm(15,19,23,26) |
Length 70mm(31,36,41) |
Length 80mm(47,55,60) |
accuracy | 0.01mm |
output volume of pump | 2.5L/5L/10L(Optional) |
system pressure | 26Mpa/31.5Mpa(Optional) |
motor power | 3kw/4kw 1,2,3 phase (Optional) |
voltage | 220V/380V/415V(Customizable) 50/60Hz |
crimping force | 500T |
work efficiency | 200pcs/h |
maximum open diameter | 114mm |
the max open tolerance | ±30mm |
package dimension | 900*680*1450mm |
machine dimension | 860*640*1300mm |
Net weight | 310kg |
Gross weight | 320kg |
TECHNICAL DATA
| Model | FY-51BY Hose Crimping Machine |
| Crimping Range | 6-51(mm) |
| Crimping Force | 600(T) |
| Hose Size | 1/4-2(inch) |
| Max. Opening | 30mm |
| Die Sets | 10 |
Work efficiency | 200PCS/H |
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
Maximum Open Diameter | 114MM |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 3(KW) |
| Length | 860(mm) |
| Width | 640(mm) |
| Height | 1300(mm) |
| Weight | 310(KG) |
NOTE
- For non standard die sets;
- Customized die sets are available;
- Special voltage 220v/240v/380v/415v(optional) are availbale;
OPTIONAL
- Quick Change Tool
- UC control
► MULTI FUNCTIONAL OPERATE PANEL
Human design, two operate mode, free change
► DIE SETS
6mm to 51mm die sets for hose from 1/4'' to 2'', die sets with high
hardness, long service time
► FOOT PEDAL
Free hands for big hose, more convenient; Double usage, both closing and opening function
► OEM SERVICE
For different color, structure or die sets.
► WIDE APPLICATION
FY51BY is a 2 Inch hose crimping machine, which is capable of
crimping hydrualic hose from 1/4'' to 2'', it can be used for quick
jointing of material, like high pressure rubber oil hose, low
pressure water or air pipes, cables, wires or ropes.
