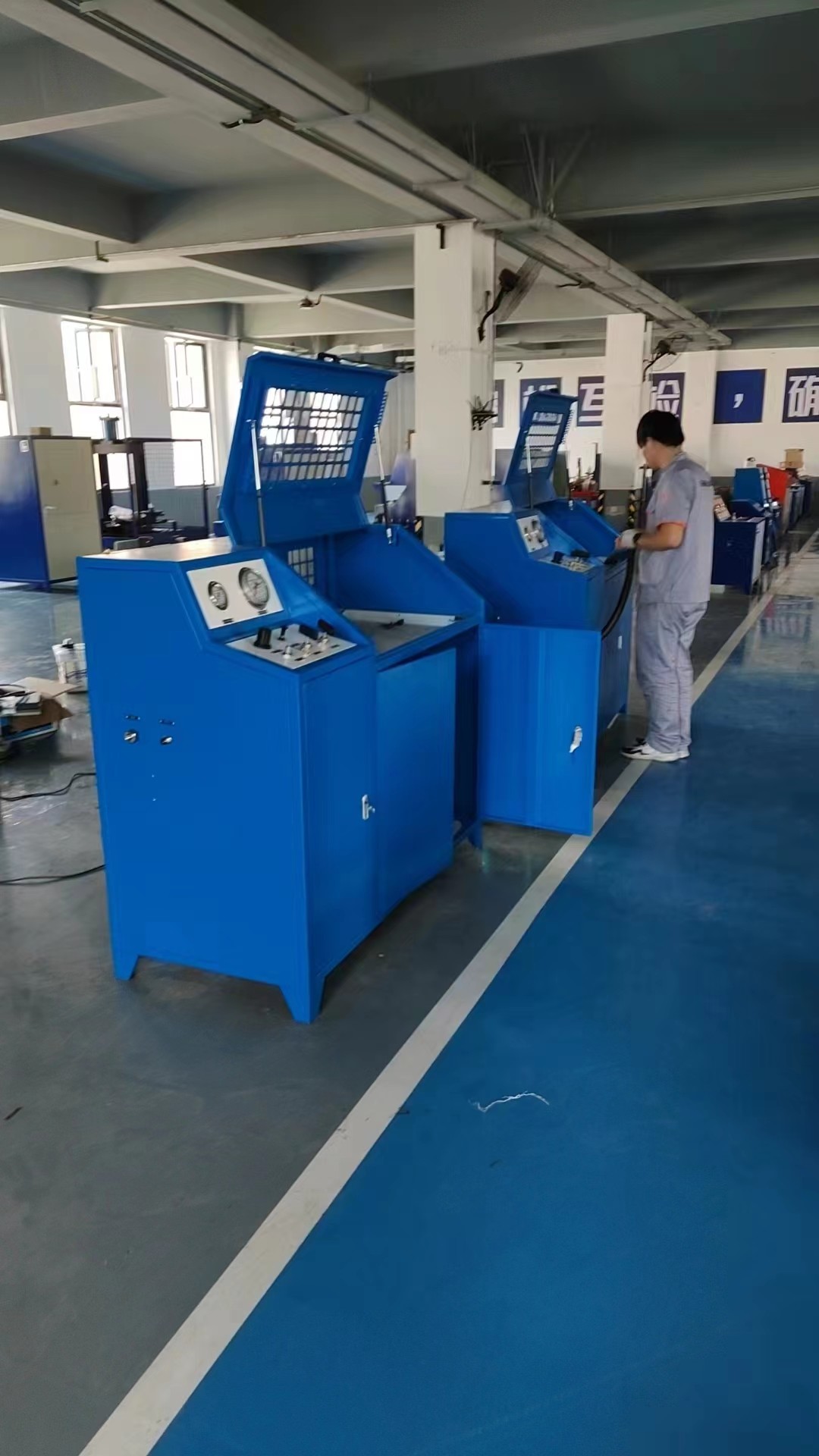

    Steel Hose Pressing Machine Hose Pressure Testing Machine Automatic Operation

    Ask Lasest Price
    Brand Name : FY
    Model Number : FY-200
    Price : USD$ 2650
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 SETS PER MONTH
    Delivery Time : 3 WORKING DAYS
    • Product Details
    • Company Profile

    Steel Hose Pressing Machine Hose Pressure Testing Machine Automatic Operation

    Product Description:

    This hose pressing machine is an ideal testing equipment for hoses. It is equipped with a pressure range from 0 to 200MPa, and it has a weight of 240kg. It requires an air consumption of 1.0m3/min, and it is controlled by button press. It comes with a warranty of 1 year, making it a reliable and trustworthy hose testing device.

    1Driving medium: compressed air, the highest pressure not less than 8 bar(3 to 8 bar)
    2Working medium: water with 5% of antirust additive,Connect to pure water, the maximum water pressure is 2000 Bar, and pneumatic diaphragm pump water injection
    3Fast fulling pump: flow 36 L/min
    4Germany imported high-pressure air drive booster pump: traffic 0-0.28 L/min,Rated outlet pressure range 0-2000 bar (0-200 mpa)
    5High-pressure exit: M18 x 1.5, 24 inner cone seal
    6The tank volume: 40 litres, actual need to refill 30 liters
    7Machine’s net weight: 240kg
    8Machine’s gross weight:260kg
    9Equipment size: 1.53 x0.70x1.32m
    10Package size: 1.65 x 0.85x 1.55 m

    Features:

    • Product Name: Hose Pressing Machine
    • Material: Steel
    • Pump Working Pressure: ≤0.8Mpa
    • Weight: 240kg
    • Equipment Size: 1.53 X0.70x1.32m
    • Pressure: High
    • Features: hose testing equipment, hose pressure testing device, pressure test equipment

    Technical Parameters:

    ParameterValue
    NameHose Pressure Testing Machine
    Pressure Range0-200MPa
    Weight240kg
    Equipment Size1.53 X0.70x1.32m
    Operation ModeAutomatic
    PressureHigh
    Warranty1 Year
    Air consumption1.0m3/min
    Pump Working Pressure≤0.8Mpa
    Control SystemButton Press

    Applications:

    FY-200 hose pressing machine is a high-pressure test equipment made of steel, designed and manufactured by FY. It is suitable for automatic operation and has a size of 1.53 X0.70x1.32m. It is mainly used for pressure testing of hoses, pipes and other equipment. The machine is equipped with a button press control system, and the pressure can be adjusted according to the needs of the user. It is widely used in various industries such as automotive, aerospace, construction, oil and gas, and many others.

    The FY-200 hose pressing machine can be used to quickly and accurately test the pressure of hoses, pipes and other components. It can detect the pressure of hoses and pipes in a short time, and the results are reliable and accurate. It is also suitable for pressure testing of valves, pumps, air compressors, etc. The machine is equipped with a safety device to ensure the safety of the operator during operation, and it is also equipped with a pressure display device to display the pressure value in real time.

    The FY-200 hose pressing machine is easy to operate and maintain. It is designed with high quality materials to ensure its stability and durability. It is an ideal pressure testing equipment for hoses, pipes and other components, and it is also a reliable and cost-effective solution for the pressure testing of various components.

    Customization:

    FY Hose Pressure Testing Machine (FY-200)

    The FY hose pressure testing machine is designed to measure the pressure of hoses up to 20 bar pressure. It is perfect for testing the pressure of hoses used in a wide variety of applications, ensuring that they meet the specifications.

    • Brand Name: FY
    • Model Number: FY-200
    • Place of Origin: China
    • Name: Hose Pressure Testing Machine
    • Pressure Range: 0-200MPa
    • Equipment Size: 1.53 X0.70x1.32m
    • Air Consumption: 1.0m3/min
    • Warranty: 1 Year

    Support and Services:

    We provide technical support and service for Hose Pressing Machine. Our team of experts are available 24/7 to help you troubleshoot any issues you may have with the product. We also provide a comprehensive warranty that covers all parts and labour for a period of one year from the date of purchase. We also offer a range of optional extended warranty packages to provide additional coverage and peace of mind. Please contact us if you have any questions or need assistance.

    Steel Hose Pressing Machine Hose Pressure Testing Machine Automatic OperationSteel Hose Pressing Machine Hose Pressure Testing Machine Automatic Operation

    Packing and Shipping:

    Packaging and Shipping

    The Hose Pressing Machine is securely packaged in a cardboard box with bubble wrap or foam surrounding it. If the product needs to be shipped, it will be done so with a reliable courier service or by air.

    FAQ:

    Q1: What is the brand name of this hose pressing machine?
    A1: The brand name is FY.
    Q2: What is the model number of this hose pressing machine?
    A2: The model number is FY-200.
    Q3: Where is this hose pressing machine made?
    A3: This hose pressing machine is made in China.
    Q4: What is the purpose of this hose pressing machine?
    A4: This hose pressing machine is used to press hoses.
    Q5: What kind of hoses can this hose pressing machine be used for?
    A5: This hose pressing machine can be used for different types of hoses.
