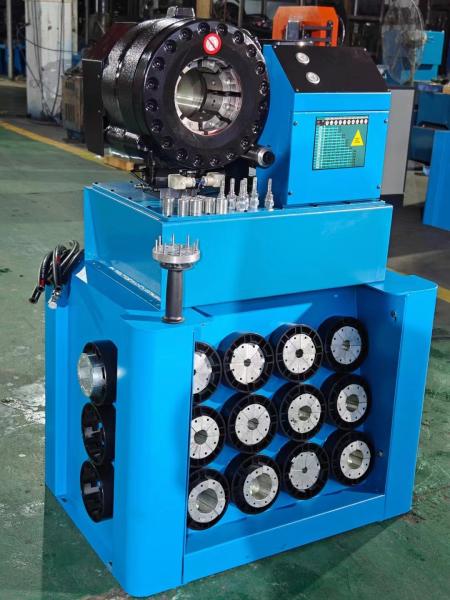

Product Description:
This Portable Hydraulic Hose Crimper is an ideal choice for your
crimping applications. With a size of 950*630*700mm, it is highly
portable and easy to transport. It features a digital panel that
allows you to adjust the crimping force with just a few clicks,
ranging from 300T. It can crimp 6 to 38mm hoses with a speed of up
to 200pcs/h, making it a very efficient tool. The motor power of
3kw/4kw ensures a smooth operation with a long lifespan.
| crimping range | 6-38 mm(1/4~1.5") |
| quantity of dies | 8 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L |
| system pressure | 26mpa/31.5mpa |
| motor power | 3kw/4Kw |
| voltage | 220v/240v/380v/415v (optional) |
| crimping force | 300 t |
| work efficiency | 200pcs/h |
| maximum open diameter | 104 mm |
| the max open tolerance | 20 ±mm |
| machine dimension | 950*630*700 mm |
| package dimension | 1000*680*750 mm |
| net weight | 275 kg |
| gross weight | 300 kg |
Features:
- Product Name: Portable Hydraulic Hose Crimper
- Size: 950*630*700 Mm
- Motor Power: 3kw/4kw
- Max Pressure: 26mpa/31.5mpa
- Type: Crimper
- Portable: Yes
- PLC Panel: Yes
- Button Press: Yes
- Hydraulic Pressure: Yes
Technical Parameters:
| Name | Parameters |
|---|
| Product Name | Portable Hydraulic Hose Crimper |
| Type | Crimper |
| Crimping Range | 1/4-1.5 Inch(6-38mm) |
| Crimping Force | 300T |
| Max Pressure | 26mpa/31.5mpa |
| Crimping Speed | 200 Pcs/h |
| Weight | 275kg |
| Power Source | Hydraulic |
| Voltage | 220v/240v/380v/415v (optional) |
| Warranty | 1 Year |
Applications:
The Portable Hydraulic Hose Crimper from FY is an easy-to-use and
reliable machine for crimping 6 to 38mm hose. It comes with a
Digital Panel Display, ensuring high precision and accuracy while
crimping. With a crimping force of 300T and a crimping speed of 200
pieces per hour, the FY-P38 is designed to provide an efficient and
durable crimping solution for any application. The machine also
features a high efficiency hydraulic power source for enhanced
performance and a digital panel for easy operation. With its
portability, the FY-P38 is the perfect choice for on-site crimping
and repairs.
Customization:
Customized Service of Portable Hydraulic Hose Crimper
Brand Name: FY
Model Number: FY-P38
Place of Origin: China
Product Name: Portable Hydraulic Hose Crimper
Crimping Speed: 200 Pcs/h
Weight: 275kg
Type: Crimper
Max Pressure: 26mpa/31.5mpa
Our Portable Hydraulic Hose Crimper is featured with digital panel,
portable design, PLC pannal, providing high pressure up to
26mpa/31.5mpa, with a crimping speed of 200 Pcs/h, and a weight of
275kg.
Support and Services:
Technical Support and Service for Portable Hydraulic Hose Crimper
We provide technical support and service for our portable hydraulic
hose crimper. Our technical team is available to assist you with
any technical questions or issues you may encounter.
Phone Support
We have a dedicated team of professionals available to answer your
questions via phone. You can contact us at 1-800-123-4567.
Email Support
If you have a technical question or issue, you can also contact us
via email. Our email address is support@hosecrimper.com.
Live Chat Support
We also offer live chat support. Just go to our website and click
on the live chat button to speak to one of our technical experts.
On-Site Service
If you need technical service on-site, we offer a team of
professional technicians who can come to your location and provide
technical assistance. Please contact us for more information.
Packing and Shipping:
Portable Hydraulic Hose Crimper Packaging and Shipping
The Portable Hydraulic Hose Crimper is packaged in a durable
cardboard box with additional cushioning materials to further
protect the product during shipment. The package also includes an
instruction manual and all necessary tools and accessories.
The Portable Hydraulic Hose Crimper is shipped via a reputable
shipping provider. Tracking information will be sent to the
customer once the product is shipped.
FAQ:
- Q:What is the Brand Name of FY Portable Hydraulic Hose Crimper?
A:The Brand Name of FY Portable Hydraulic Hose Crimper is FY. - Q:What is the Model Number of FY Portable Hydraulic Hose Crimper?
A:The Model Number of FY Portable Hydraulic Hose Crimper is FY-P38. - Q:Where is FY Portable Hydraulic Hose Crimper made?
A:FY Portable Hydraulic Hose Crimper is made in China. - Q:What type of crimping can FY Portable Hydraulic Hose Crimper do?
A:FY Portable Hydraulic Hose Crimper can do hydraulic hose crimping. - Q:What is the advantage of FY Portable Hydraulic Hose Crimper?
A:The advantage of FY Portable Hydraulic Hose Crimper is that it is
portable and has a long service life.
