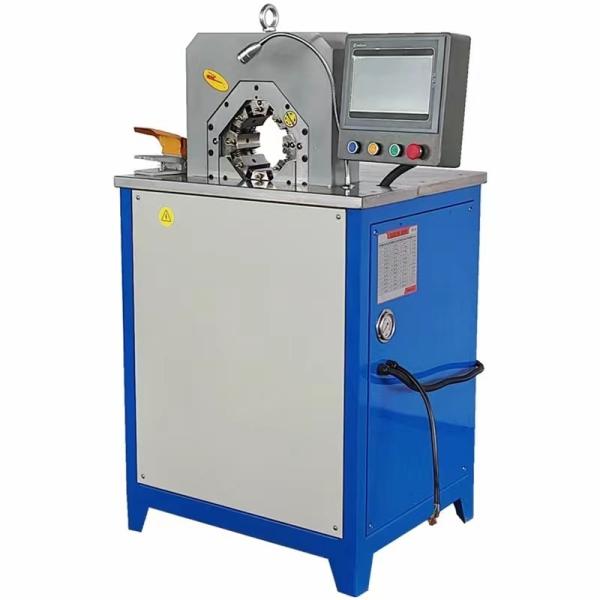

Product Description:
AC Hose Crimping Machine is a perfect solution for one-time
crimping of hose or pipe fittings. It is equipped with a crimping
range of 6-76mm, capable of crimping 3 inch hose. With a weight of
1250KG and system pressure of 31.5mpa, it comes with 15 sets of
crimping dies which makes it suitable for various needs. It is a
reliable and efficient crimping machine for hose and pipe fittings.
| crimping range | 6-76 mm(1/4~3") |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw/7.5Kw |
| voltage | 110V/220V/380V/415V
50/60Hz(optional) |
| crimping force | 1500 t |
| work efficiency | 300pcs/h |
| maximum open diameter | 165 mm |
| the max open tolerance | 60 ±mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1100*850*1730 mm |
| net weight | 1250 kg |
| gross weight | 1300 kg |
Features:
- Product Name: AC Hose Crimping Machine
- Size: 1000*800*1630 Mm
- Max Opening: 158mm
- Crimping Speed: 10-15s/time
- Control System: PLC/BUTTON/DIGITAL PANNAL
- Crimping Precision: ±0.01mm
- Super Thin: Yes
- Withhold Faster: Yes
Technical Parameters:
| Parameter | Specification |
|---|
| Model | AC Hose Crimping Machine |
| Crimping Precision | ±0.01mm |
| Power Supply | 220V/380V/415V/440V |
| Output Volume of Pump | 10L/16L |
| Crimping Speed | 10-15s/time |
| Crimping Force | 1500T |
| Weight | 1250KG |
| Motor Power | 5.5KW |
| Size | 1000*800*1630 Mm |
| Crimping Type | One-time Crimping |
| Crimping Range | 3 inch |
| Withhold Faster | Yes |
| More Pressure | Yes |
Applications:
FY AC Hose Crimping Machine, Model Number FY-CBK120, is a
cutting-edge device specifically designed to withstand faster
crimping. This lightweight equipment only weighs 1250KG, making it
super thin and efficient to store and operate. It is also equipped
with a PLC/BUTTON/DIGITAL PANNAL for system control, and is capable
of one-time crimping of 3 inch hoses and other similar products.
Additionally, the output volume of the pump is 10L/16L, and it is
available with power supply of 220V/380V/415V/440V. With its
advanced features, the FY AC Hose Crimping Machine is an ideal
choice for users seeking an easy-to-use and reliable crimping
solution.
Customization:
AC Hose Crimping Machine
- Brand Name: FY
- Model Number: FY-CBK120
- Place of Origin: China
- Crimping Precision: ±0.01mm
- Weight: 1250KG
- Output volume of pump: 10L/16L
- Max Opening: 158mm
- Crimping Range: 6-76mm
Our AC Hose Crimping Machine is designed for crimping hoses up to
76mm in diameter. It is equipped with more pressure to produce
ultra-thin hoses with high precision. Its crimping precision is
±0.01mm.
Support and Services:
AC Hose Crimping Machine Technical Support and Service
Our team of experts is here to provide technical support and
after-sales service for your AC Hose Crimping Machine. We provide a
wide range of services to ensure that your crimping machine runs
smoothly and efficiently.
- We provide installation and training services to help you get the
most out of your machine.
- We offer troubleshooting services to help diagnose and resolve any
technical issues.
- We provide ongoing maintenance and repair services to keep your
machine running optimally.
- We offer spare parts and accessories to ensure that you have
everything you need to keep your machine in top condition.
- We provide technical advice and guidance when needed.
If you have any questions or need assistance with your AC Hose
Crimping Machine, please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for AC Hose Crimping Machine
The AC Hose Crimping Machine is packaged in a wooden box with a
foam insert to protect the machine from damage during
transportation. The wooden box is marked with the machine’s serial
number, and the box is sealed with plastic wrap.
The AC Hose Crimping Machine will be shipped by air freight, with
an estimated delivery time of 3-5 days. The shipping costs will be
borne by the buyer. The package should arrive in good condition,
and any damage to the machine should be reported to the seller
immediately.
FAQ:
Q1:What is the brand and model of AC Hose Crimping Machine?
A1:The brand is FY and the model number is FY-CBK120.
Q2:Where is this AC Hose Crimping Machine from?
A2:It is from China.
Q3:What materials is this AC Hose Crimping Machine suitable for?
A3:This machine is suitable for crimping rubber, plastic, metal,
and composite hoses.
Q4:What is the crimping force of this AC Hose Crimping Machine?
A4:The crimping force of this machine is up to 120 tons.
Q5:What is the cycle speed of this AC Hose Crimping Machine?
A5:The cycle speed of this machine is up to 4s.
