Product Description:
AC Hose Crimping Machine is an advanced crimping machine with
superior performance, equipped with a 3-inch crimping range and
super thin design, to ensure more pressure and high-efficiency
crimping. It is a highly efficient machine, with a size of
1000*800*1630 mm and a motor power of 5.5KW, and 15 sets of dies,
and a control system of PLC/BUTTON/DIGITAL PANNAL. It is an ideal
choice for users looking for a reliable and efficient hose crimping
machine.
| crimping range | 6-76 mm(1/4~3") |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw/7.5Kw |
| voltage | 110V/220V/380V/415V
50/60Hz(optional) |
| crimping force | 1500 t |
| work efficiency | 300pcs/h |
| maximum open diameter | 165 mm |
| the max open tolerance | 60 ±mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1100*850*1730 mm |
| net weight | 1250 kg |
| gross weight | 1300 kg |
Features:
- Product Name: AC Hose Crimping Machine
- Quantity of Dies: 15 Sets
- Control System: PLC/BUTTON/DIGITAL PANNAL
- Motor Power: 5.5KW
- Crimping Force: 1500T
- Size: 1000*800*1630 Mm
- Crimping Range: 6-76mm
- High Speed: Withhold faster
- Ultra Thin Hose: Available
| crimping range | 6-76 mm(1/4~3") |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw/7.5Kw |
| voltage | 110V/220V/380V/415V
50/60Hz(optional) |
| crimping force | 1500 t |
| work efficiency | 300pcs/h |
| maximum open diameter | 165 mm |
| the max open tolerance | 60 ±mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1100*850*1730 mm |
| net weight | 1250 kg |
| gross weight | 1300 kg |
Technical Parameters:
| Item | Specification |
|---|
| Max Opening | 158mm, 3 inch |
| Motor Power | 5.5KW |
| Weight | 1250KG |
| quantity of dies | 15 Sets |
| Power Supply | 220V/380V/415V/440V |
| system pressure | 31.5mpa |
| Crimping Force | 1500T |
| Control System | PLC/BUTTON/DIGITAL PANNAL, withhold faster |
| Crimping Speed | 10-15s/time, super thin |
| output volume of pump | 10L/16L, 6mm |
Applications:
The FY-CBK120 AC Hose Crimping Machine from FY is a powerful,
automatic, hydraulic machine designed for crimping hoses from
6-76mm (3 inch) with a crimping precision of ±0.01mm. It has an
output volume of pump of 10L/16L and comes with 15 sets of dies,
offering a wide crimping range. This machine is designed to provide
more pressure than manual crimping, ensuring a reliable, secure
connection.
Customization:
Customized Service for FY AC Hose Crimping Machine
Brand Name: FY
Model Number: FY-CBK120
Place of Origin: China
Model: AC Hose Crimping Machine
Crimping Force: 1500T
Control System: PLC/BUTTON/DIGITAL PANNAL
Crimping Precision: ±0.01mm
Crimping Range: 6-76mm
Highlight: Super thin, 3 inch, withhold faster
Support and Services:
AC Hose Crimping Machine Technical Support and Service
We provide technical support and service for the AC Hose Crimping
Machine. Our experienced service team is available 24/7 to help you
with any technical issues you may have. We offer repair services,
troubleshooting advice, and spare parts for all our machines.
Our technical support staff is available by email, phone, or online
chat to answer any questions you may have about the AC Hose
Crimping Machine. We will work with you to ensure that your machine
is functioning properly and that you are able to get the most out
of your purchase.
We offer a range of preventative maintenance services for our AC
Hose Crimping Machine. Our experienced technicians can help you
maintain your machine to ensure it is running optimally. We can
also recommend any upgrades or replacement parts that may be
needed.
We are committed to delivering the highest quality customer service
and technical support for the AC Hose Crimping Machine. Our team is
always available to answer any questions you may have and to help
you get the most out of your purchase.
Packing and Shipping:

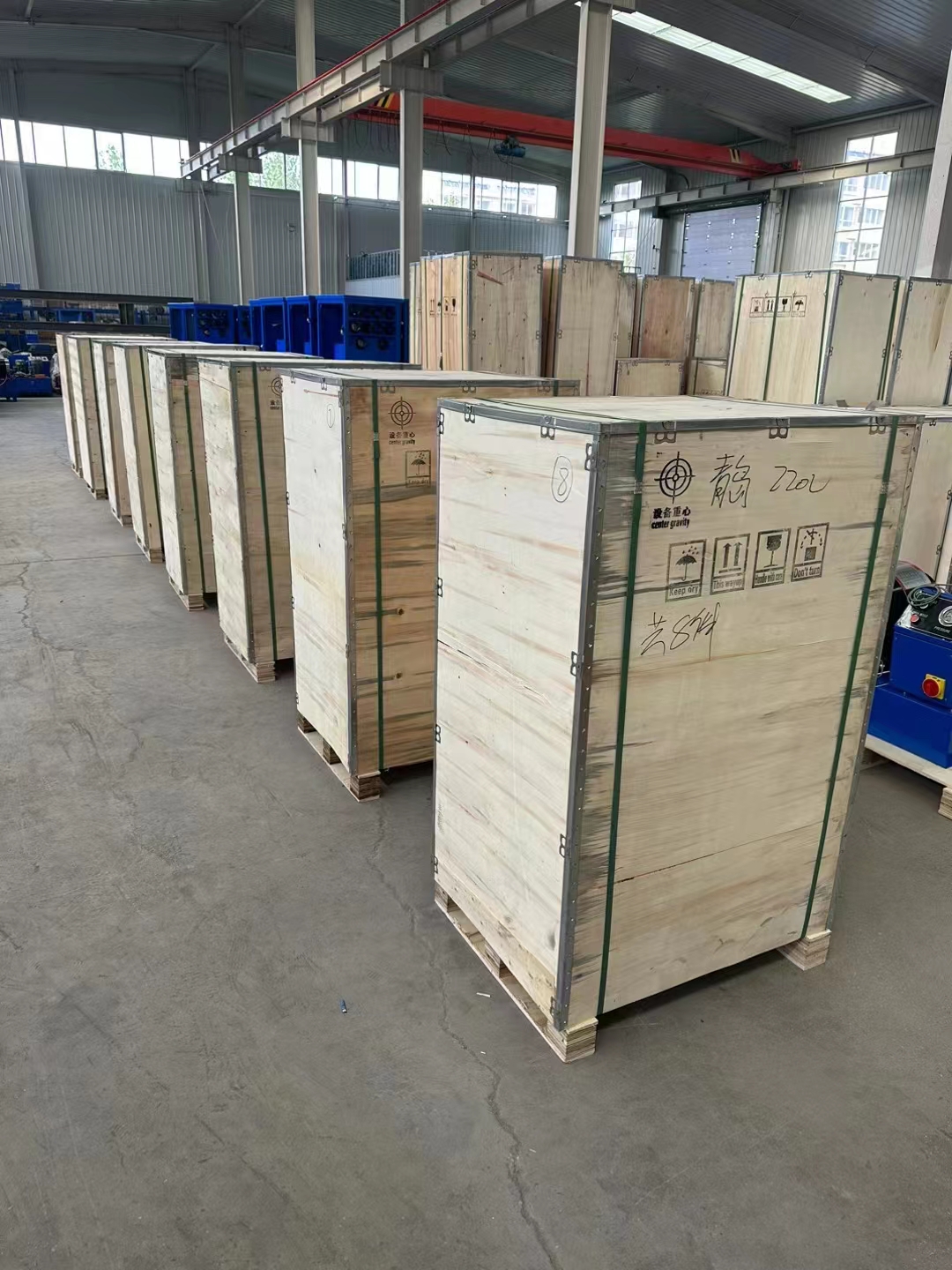

The packaging and shipping of AC Hose Crimping Machine is as
follows:
- The machine and its accessories will be packed in a strong wooden
case with foam inside.
- The machine will be shipped by air, sea or express (DHL, FedEx,
UPS, etc.).
- The delivery time depends on the distance and the mode of
transportation.
FAQ:
Q1: What is the brand name of the AC Hose Crimping Machine?
A1: The brand name of the AC Hose Crimping Machine is FY.
Q2: What is the model number of the AC Hose Crimping Machine?
A2: The model number of the AC Hose Crimping Machine is FY-CBK120.
Q3: Where is the AC Hose Crimping Machine made?
A3: The AC Hose Crimping Machine is made in China.
Q4: What is the AC Hose Crimping Machine used for?
A4: The AC Hose Crimping Machine is used to crimp hoses for air
conditioning systems.
Q5: What are the key features of the AC Hose Crimping Machine?
A5: The key features of the AC Hose Crimping Machine include a
durable construction, ergonomic design and high accuracy.
